Sandvik Coromant RA300-152R38-25M CoroMill™ 300 face milling cutter
R 21 094,45
inc. vat
In stock
SKU
5740068

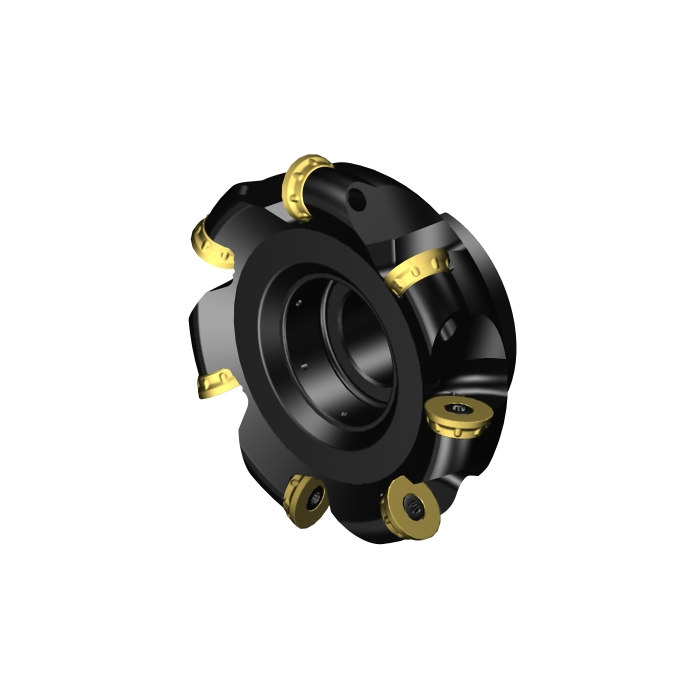

CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
| CP - Coolant Pressure | 3000000Pa |
|---|---|
| DCON - Connection Diameter | 38.1mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 63mm |
| TQ - Torque | 10.2Nm |
| RPMX - Rotational Speed Maximum | 95761/min |
| WT - Weight Of Item | 3.573kg |
| OAL - Overall Length | 63mm |
| OHX - Maximum Overhang | 63mm |
| RMPX - Maximum Ramping Angle | 3.4deg |
| GAMO - Orthogonal Rake Angle | 7deg |
| LAMS - Inclination Angle | -2deg |
| AN - Clearance Angle Major | 15deg |
| IC - Inscribed Circle Diameter | 25.4mm |
| RE - Corner Radius | 12.7mm |
| Insert Thickness | 7.94mm |
| APMX - Depth Of Cut Maximum | 12.5mm |
| DC - Cutting Diameter | 127mm |
| DCF - Cutting Diameter Face Contact | 127mm |
| GAMF - Radial Rake Angle | 2.00000003deg |
| GAMP - Axial Rake Angle | 6.99999995deg |
| DCX - Maximum Cutting Diameter | 152.4mm |
| AZ - Maximum Plunge Depth | 7mm |
| ORDCODE | RA300-152R38-25M |
| ADINTMS - Adaptive Interface Machine Direction | M_FDA1B1_S1500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-26 13:42:00.000 |
| STDLET - Standard Letter | B |
| STDNO - Standard Number | ISO6462 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MD2570_1 |
| Hand | R |
| MIID - Master Insert Identification | R300-2570.. |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 25 |
| CICT - Cutting Item Count | 7 |
| ZEFP - Peripheral Effective Cutting Edge Count | 7 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | True |
