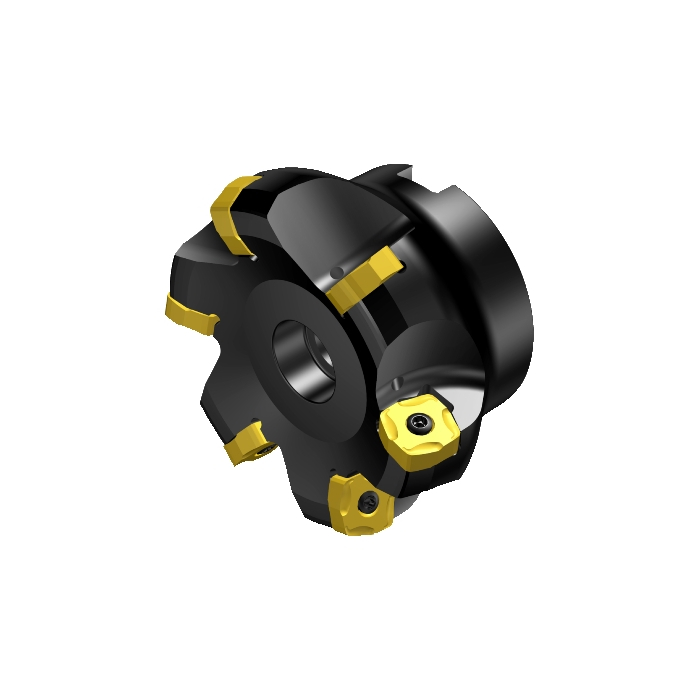

Sandvik Coromant RA365-160J51-S15H CoroMill™ 365 face milling cutter

R 25 676,05 inc. vat
In stock
SKU
5739411
CoroMill® 365 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 365 face milling cutter
More Information
DCON - Connection Diameter 50.8mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 63mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 75001/min
WT - Weight Of Item 6.1kg
OAL - Overall Length 63mm
OHX - Maximum Overhang 63mm
KAPR - Tool Cutting Edge Angle 65deg
RMPX - Maximum Ramping Angle 0deg
GAMO - Orthogonal Rake Angle -9.5deg
LAMS - Inclination Angle -7deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 15mm
Insert Thickness 5.66mm
APMX - Depth Of Cut Maximum 6mm
DC - Cutting Diameter 160mm
DCF - Cutting Diameter Face Contact 160mm
GAMF - Radial Rake Angle -5.6977106deg
GAMP - Axial Rake Angle -10.31507694deg
DCX - Maximum Cutting Diameter 166.7mm
AZ - Maximum Plunge Depth 0mm
ORDCODE RA365-160J51-S15H
ADINTMS - Adaptive Interface Machine Direction M_FDACB1_S2000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-03-24 01:46:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MG1505_2
Hand R
MIID - Master Insert Identification R365-1505ZNE
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 15
CICT - Cutting Item Count 14
ZEFP - Peripheral Effective Cutting Edge Count 14
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
