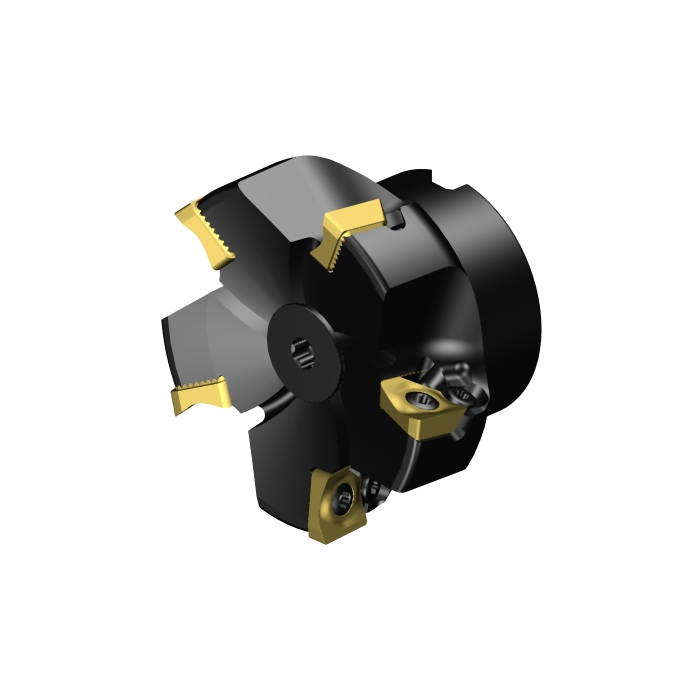

Sandvik Coromant RA590-063R19S-11M CoroMill™ Century square shoulder milling cutter

R 14 365,80 inc. vat
Out of stock
SKU
5740378
CoroMill® Century square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Century square shoulder milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 19.05mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 40mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 349001/min
WT - Weight Of Item 0.155kg
OAL - Overall Length 40mm
OHX - Maximum Overhang 40mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 0deg
GAMO - Orthogonal Rake Angle -12.1deg
LAMS - Inclination Angle 8deg
Insert Thickness 5mm
APMX - Depth Of Cut Maximum 11mm
W1 - Insert Width 11.5mm
DC - Cutting Diameter 63.5mm
DCF - Cutting Diameter Face Contact 62.7mm
GAMF - Radial Rake Angle -12.09999977deg
GAMP - Axial Rake Angle 7.99999974deg
AZ - Maximum Plunge Depth 0mm
ORDCODE RA590-063R19S-11M
ADINTMS - Adaptive Interface Machine Direction M_FDA1A1_R7500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 13:43:00.000
STDLET - Standard Letter A
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MJ1105_2
Hand R
MIID - Master Insert Identification R590-1105..
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 11
CICT - Cutting Item Count 5
ZEFP - Peripheral Effective Cutting Edge Count 5
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
