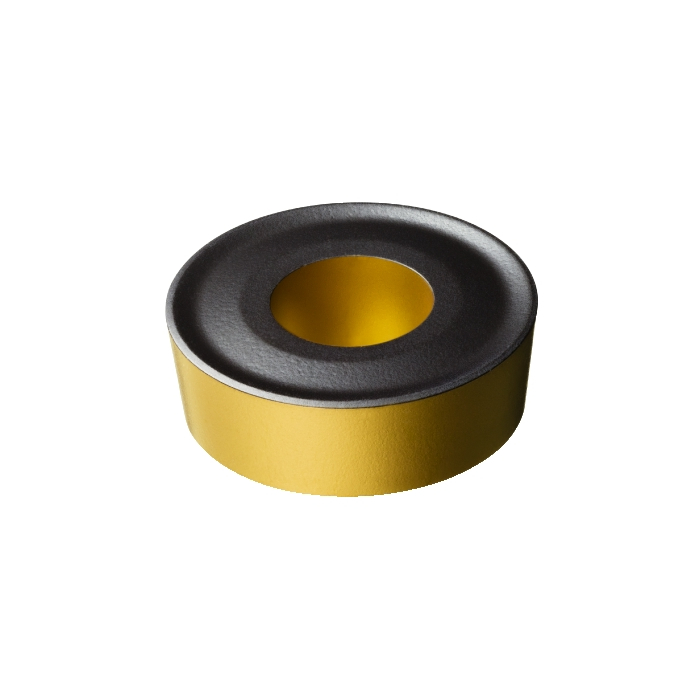

Sandvik Coromant RCMX 32 09 00 4415 T-Max™ P insert for turning
R 1 665,20
inc. vat
In stock
SKU
8198015
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 88g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 32mm |
| RE - Corner Radius | 16mm |
| Insert Thickness | 9.525mm |
| D1 - Fixing Hole Diameter | 9.5mm |
| BN - Face Land Width | 0.4mm |
| GB - Face Land Angle | 15deg |
| ORDCODE | RCMX 32 09 00 4415 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-09-23 22:19:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 32 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_RC3209M_1 |
| Grade | 4415 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 00 |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
