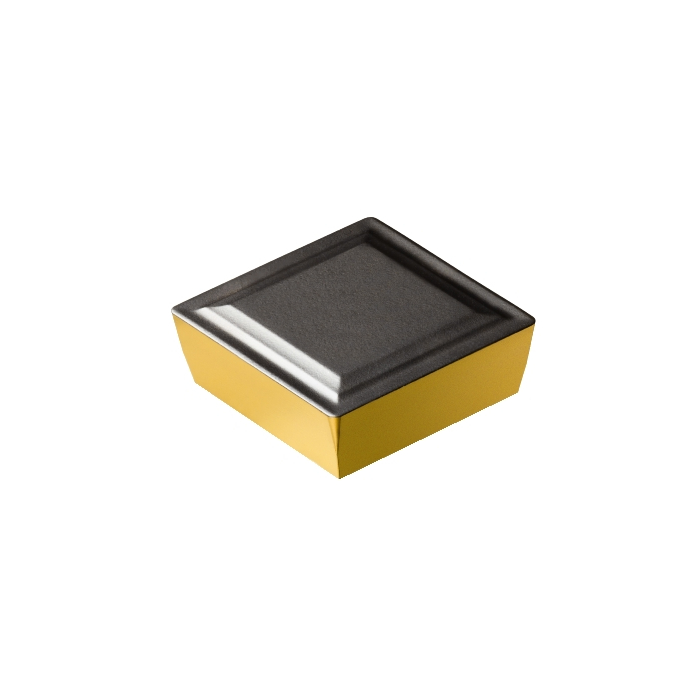

Sandvik Coromant SPMR 09 03 04 4425 T-Max™ S insert for turning

R 182,85 inc. vat
In stock
SKU
8019548
T-Max® S insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 4g
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.3969mm
Insert Thickness 3.175mm
LE - Cutting Edge Effective Length 9.125mm
L - Cutting Edge Length 9.525mm
ORDCODE SPMR 09 03 04 4425
CHANGEDATE 2022-09-22 11:53:00.000
Hand N
IFS - Insert Mounting Style Code 1
SC - Insert Shape Code S
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SP0903_1
Grade 4425
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation 53
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
