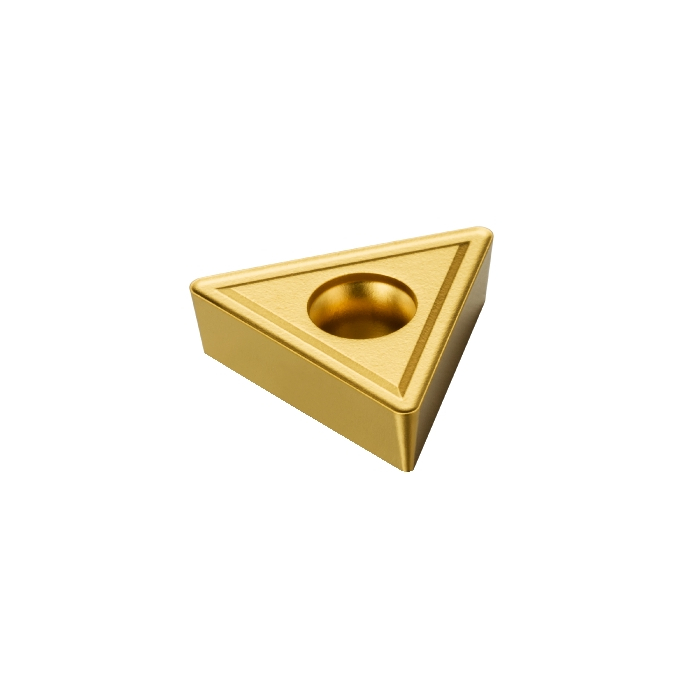

Sandvik Coromant TCMT 16 T3 08-56 235 T-Max® U insert for drilling
R 207,00
inc. vat
In stock
SKU
5752692
T-Max® U insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 5.1g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 3.7mm |
| L - Cutting Edge Length | 16.4978mm |
| BN - Face Land Width | 0.07mm |
| GB - Face Land Angle | 0deg |
| GAN - Insert Rake Angle | 15deg |
| ORDCODE | TCMT 16 T3 08-56 235 |
| CHANGEDATE | 2022-04-06 03:23:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 16 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DB16T3_1 |
| Grade | 235 |
| COATING | CVD TiCN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 56 |
| INSUC - Insert Usage Code | P |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
