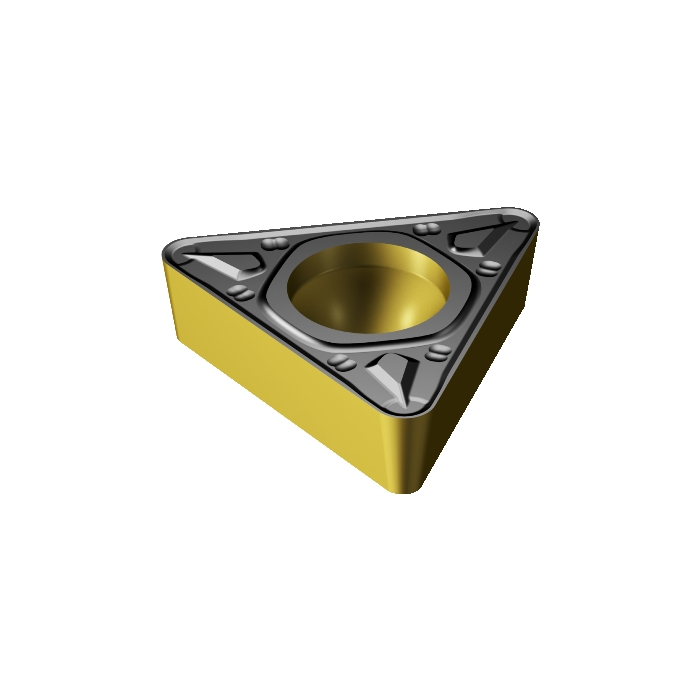

Sandvik Coromant TCMT 16 T3 12-MM 2220 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant TCMT 16 T3 08-MM 2220 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant TCMT 16 T3 12-MM 2220 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6864619cd/sandvik-coromant-tcmt-16-t3-12-mm-2220-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant TCMT 16 T3 08-MM 2220 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/686444e02/sandvik-coromant-tcmt-16-t3-08-mm-2220-coroturntm-107-insert-for-turning.jpg)
R 215,05
inc. vat
In stock
SKU
7231453
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.005kg |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.4mm |
LE - Cutting Edge Effective Length | 15.6978mm |
L - Cutting Edge Length | 16.4978mm |
ORDCODE | TCMT 16 T3 08-MR 2220 |
CHANGEDATE | 2022-09-23 21:14:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 16 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC16T3_1 |
Grade | 2220 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | MR |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | False |
