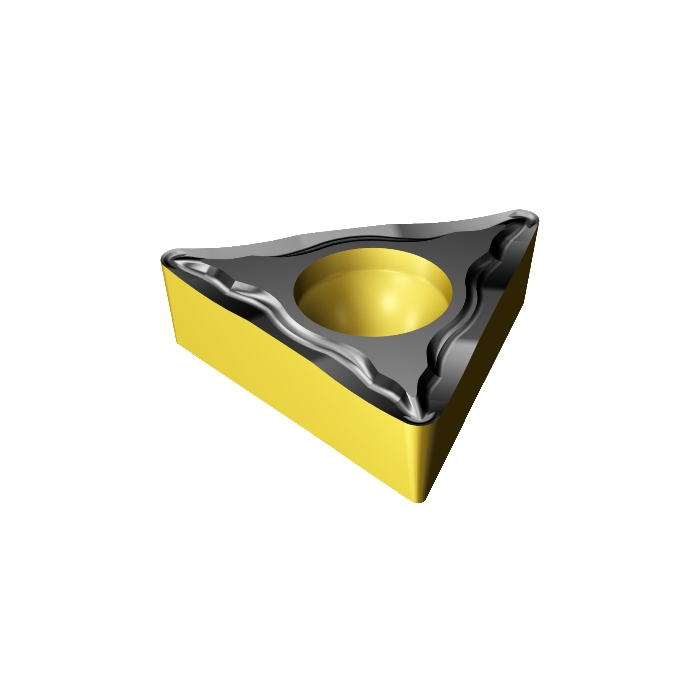

Sandvik Coromant TCMT 16 T3 08-UM 4425 CoroTurn™ 107 insert for turning
R 246,10
inc. vat
In stock
SKU
7861124
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 5g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| LE - Cutting Edge Effective Length | 15.6978mm |
| L - Cutting Edge Length | 16.4978mm |
| ORDCODE | TCMT 16 T3 08-UM 4425 |
| CHANGEDATE | 2022-09-23 22:06:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 16 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_TC16T3_1 |
| Grade | 4425 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | UM |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
