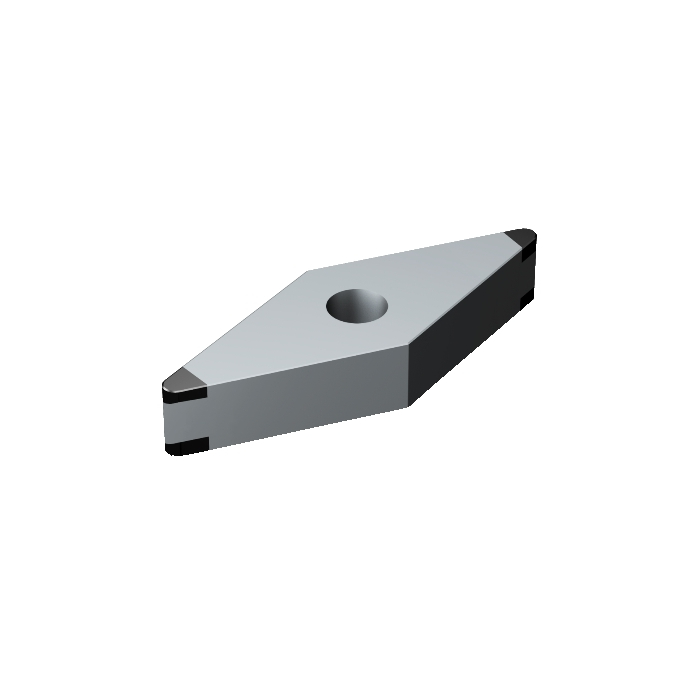

Sandvik Coromant VNGA160404S01525H 7125 T-Max™ P insert for turning

R 2 237,90 inc. vat
In stock
SKU
7586880
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 11g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.4mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 3.81mm
LE - Cutting Edge Effective Length 2.5mm
L - Cutting Edge Length 16.6063mm
BN - Face Land Width 0.15mm
GB - Face Land Angle 25deg
GAN - Insert Rake Angle 0deg
ORDCODE VNGA160404S01525H 7125
CHANGEDATE 2022-09-22 10:33:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code V
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_VN1604_1
Grade 7125
COATING PVD AlTiCrN
SUBSTRATE BC
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
