Sandvik Coromant WCMX 08 04 12 R-53 H13A Coromant U insert for drilling
Next

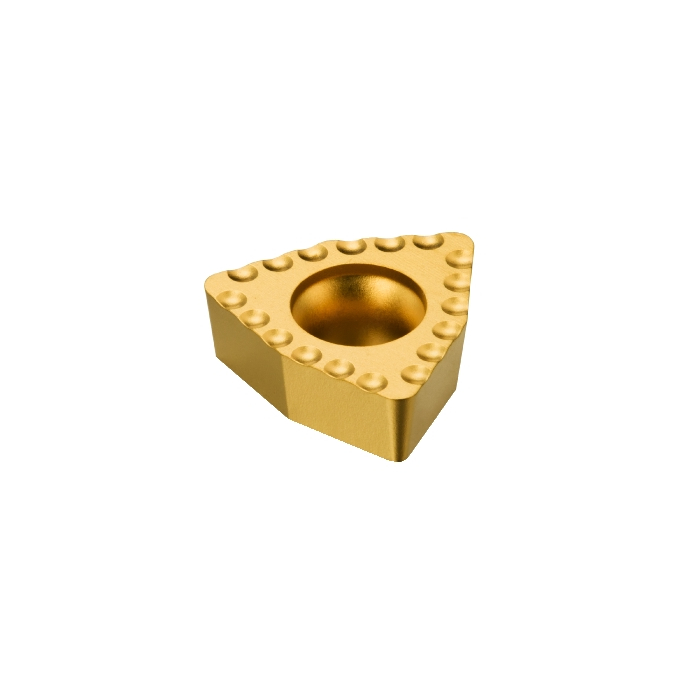

Sandvik Coromant WCMX 08 04 12 R-51 H13A Coromant U insert for drilling
Previous
![Sandvik Coromant WCMX 08 04 12 R-53 H13A Coromant U insert for drilling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7334875c6/sandvik-coromant-wcmx-08-04-12-r-53-h13a-coromant-u-insert-for-drilling.jpg)
![Sandvik Coromant WCMX 08 04 12 R-51 H13A Coromant U insert for drilling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/733466707/sandvik-coromant-wcmx-08-04-12-r-51-h13a-coromant-u-insert-for-drilling.jpg)
R 287,50
inc. vat
In stock
SKU
5756273
Coromant U insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant U insert for drilling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 9.5g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 1.2mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 4.3mm |
L - Cutting Edge Length | 8.6873mm |
GAN - Insert Rake Angle | 12deg |
ORDCODE | WCMX 08 04 12 R-51 235 |
CHANGEDATE | 2022-09-21 12:28:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 08 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DD0804P_1 |
Grade | 235 |
COATING | CVD TiCN+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 51 |
INSUC - Insert Usage Code | P |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | False |
