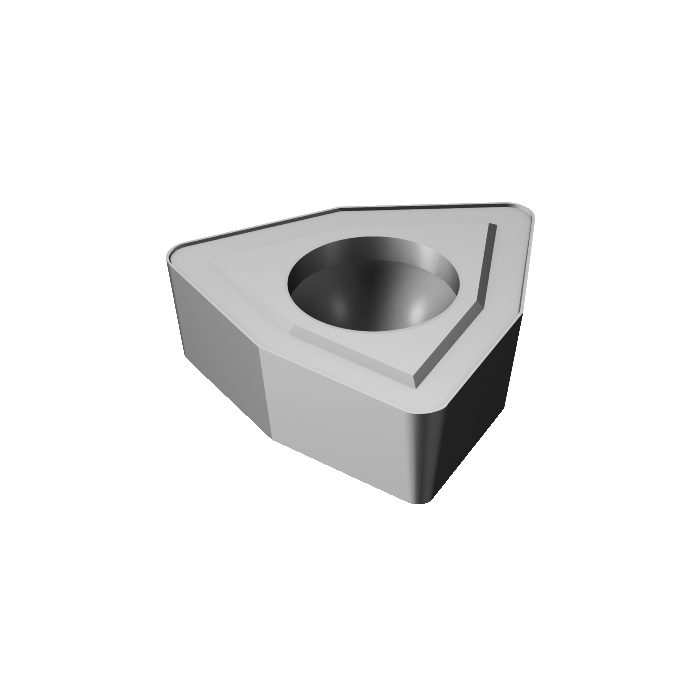

Sandvik Coromant WCMX 08 04 12 R-53 H13A Coromant U insert for drilling
R 227,70
inc. vat
In stock
SKU
5756275
Coromant U insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant U insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 9.5g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 1.2mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 4.3mm |
| L - Cutting Edge Length | 8.6873mm |
| GAN - Insert Rake Angle | 18deg |
| ORDCODE | WCMX 08 04 12 R-53 H13A |
| CHANGEDATE | 2022-09-21 12:28:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | W |
| SSC - Insert Seat Size Code | 08 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DD0804_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | 53 |
| INSUC - Insert Usage Code | P+C |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | False |
