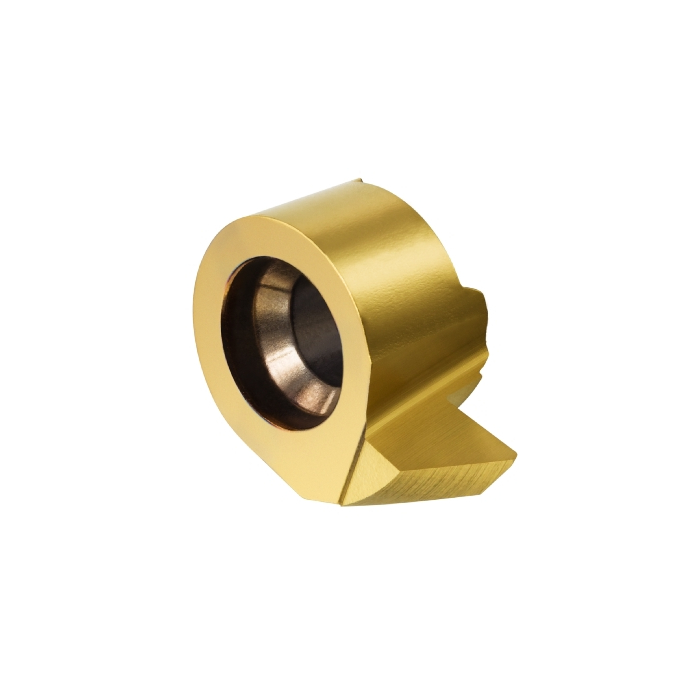

Sandvik Coromant MB-07B030-02-10R 1025 CoroCut™ MB solid carbide head for back boring

Name: Sandvik Coromant MB-07B030-02-10R 1025 CoroCut™ MB solid carbide head for back boring
SKU: 6879586
Price: 407.10 ZAR
Availability: OutOfStock

Be the first to review this product

R 407,10 inc. vat

Out of stock

SKU

6879586

CoroCut® MB solid carbide head for back boring

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® MB solid carbide head for back boring

More Information

More Information
DCON - Connection Diameter	7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	1.3mm
WT - Weight Of Item	1.5g
OAL - Overall Length	4.65mm
OHX - Maximum Overhang	1.3mm
KAPR - Tool Cutting Edge Angle	92deg
RMPX - Maximum Ramping Angle	27deg
DMIN - Minimum Bore Diameter	10mm
WF - Functional Width	5.8mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	15deg
LAMS - Inclination Angle	5.7deg
RE - Corner Radius	0.2mm
LPR - Protruding Length	3.95mm
APMX - Depth Of Cut Maximum	2mm
ORDCODE	MB-07B030-02-10R 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMD_C0070_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-06-23 13:24:00.000
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
