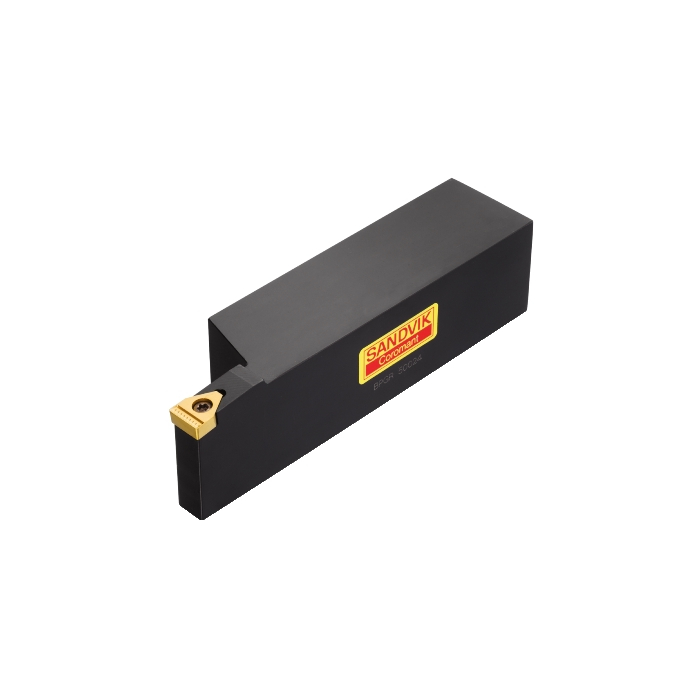

Sandvik Coromant BPGL 75024 T-Max™ shank tool for parting and grooving
R 6 091,55
inc. vat
In stock
SKU
5723273
T-Max® shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® shank tool for parting and grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 177.8mm |
| WT - Weight Of Item | 1.7kg |
| OAL - Overall Length | 177.8mm |
| OHX - Maximum Overhang | 50.8mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 38.1mm |
| HF - Functional Height | 38.1mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 6.35mm |
| H - Shank Height | 38.1mm |
| CW - Cutting Width | 19.05mm |
| B - Shank Width | 38.1mm |
| CDX - Cutting Depth Maximum | 44.45mm |
| ORDCODE | BPGL 75024 |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B2424_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 16:50:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CJN0377_1 |
| Hand | L |
| MIID - Master Insert Identification | BP 750030 |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 15.875 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
