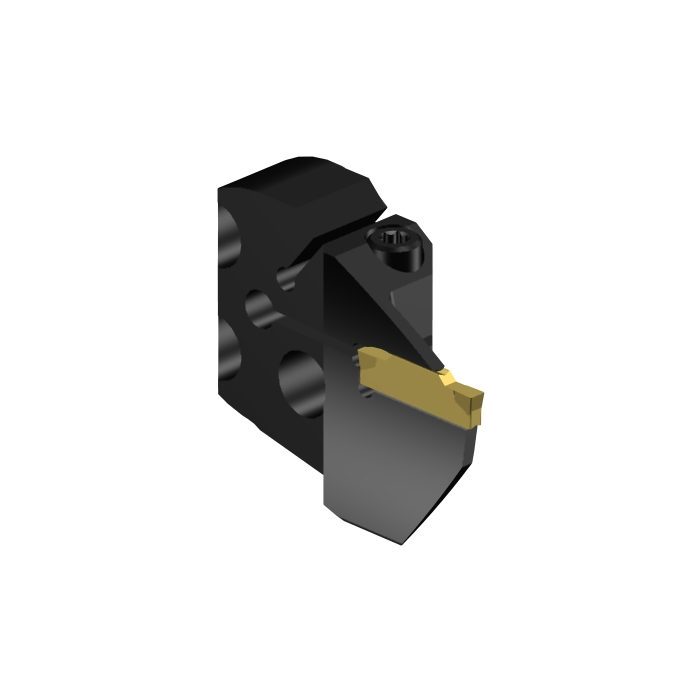

Sandvik Coromant 570-32R123F15B068B CoroCut™ 1-2 head for face grooving

Name: Sandvik Coromant 570-32R123F15B068B CoroCut™ 1-2 head for face grooving
SKU: 5764695
Price: 4289.50 ZAR
Availability: InStock

R 4 289,50 inc. vat

In stock

SKU

5764695

CoroCut® 1-2 head for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 head for face grooving

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	14mm
TQ - Torque	2Nm
WT - Weight Of Item	0.11kg
OAL - Overall Length	22.4mm
OHX - Maximum Overhang	12.75mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	37.4mm
HF - Functional Height	0.1mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.3321mm
LPR - Protruding Length	18.6mm
CW - Cutting Width	2.5mm
CDX - Cutting Depth Maximum	15mm
DAXN - Minimum Axial Groove Outside Diameter	73mm
DAXX - Maximum Axial Groove Outside Diameter	98mm
ORDCODE	570-32R123F15B068B
ADINTMS - Adaptive Interface Machine Direction	M_SLHDS_C0320_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:59:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCF2_2
Hand	R
MIID - Master Insert Identification	N123F2-0250-0002-CM
SSC - Insert Seat Size Code	F
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
