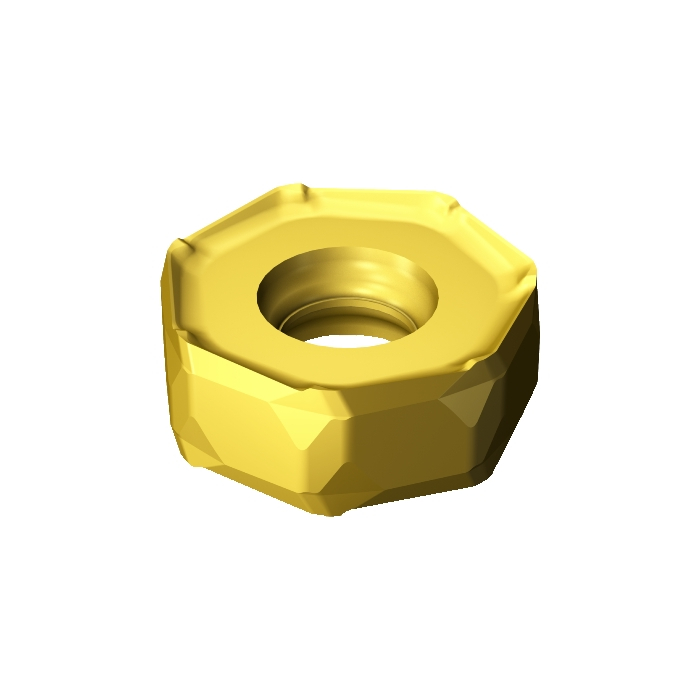

Sandvik Coromant 745R-2109E-M31 4230 CoroMill™ 745 insert for milling

Name: Sandvik Coromant 745R-2109E-M31 4230 CoroMill™ 745 insert for milling
SKU: 7046681
Price: 599.15 ZAR
Availability: InStock

R 599,15 inc. vat

In stock

SKU

7046681

CoroMill® 745 insert for milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 745 insert for milling

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	0.033kg
AN - Clearance Angle Major	13deg
IC - Inscribed Circle Diameter	21mm
RE - Corner Radius	1mm
Insert Thickness	9mm
D1 - Fixing Hole Diameter	8.3mm
LE - Cutting Edge Effective Length	7.1mm
L - Cutting Edge Length	10.113067mm
KRINS - Major Cutting Edge Angle	42deg
BN - Face Land Width	0.2mm
GB - Face Land Angle	-30deg
BS - Wiper Edge Length	1.9mm
GAN - Insert Rake Angle	44deg
APMX - Depth Of Cut Maximum	4.5mm
BSR - Wiper Edge Radius	150mm
ORDCODE	745R-2109E-M31 4230
CHANGEDATE	2022-09-23 20:24:00.000
Hand	R
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	21
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_NN2109_1
Grade	4230
COATING	CVD TiCN+Al2O3+TiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	M31
CEDC - Cutting Edge Count	14
WEP - Wiper Edge Property	True
