Sandvik Coromant R365-1505ZNE-PM 4330 CoroMill™ 365 insert for milling
R 458,85
inc. vat
In stock
SKU
7564446

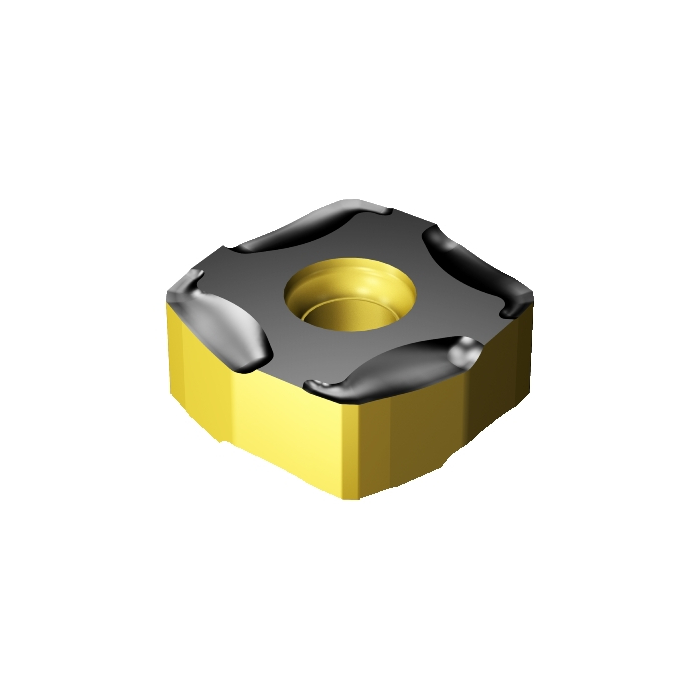

CoroMill® 365 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 365 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 14.3g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 15mm |
| RE - Corner Radius | 0.3mm |
| Insert Thickness | 5.66mm |
| D1 - Fixing Hole Diameter | 4.6mm |
| LE - Cutting Edge Effective Length | 6.4mm |
| KRINS - Major Cutting Edge Angle | 65deg |
| BS - Wiper Edge Length | 1.5mm |
| GAN - Insert Rake Angle | 1deg |
| APMX - Depth Of Cut Maximum | 6mm |
| KCH - Corner Chamfer | 35deg |
| CHW - Corner Chamfer Width | 0.71mm |
| BSR - Wiper Edge Radius | 150mm |
| ORDCODE | R365-1505ZNE-PM 4330 |
| CHANGEDATE | 2022-09-23 21:19:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 15 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MG1505_1 |
| Grade | 4330 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PM |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | True |
