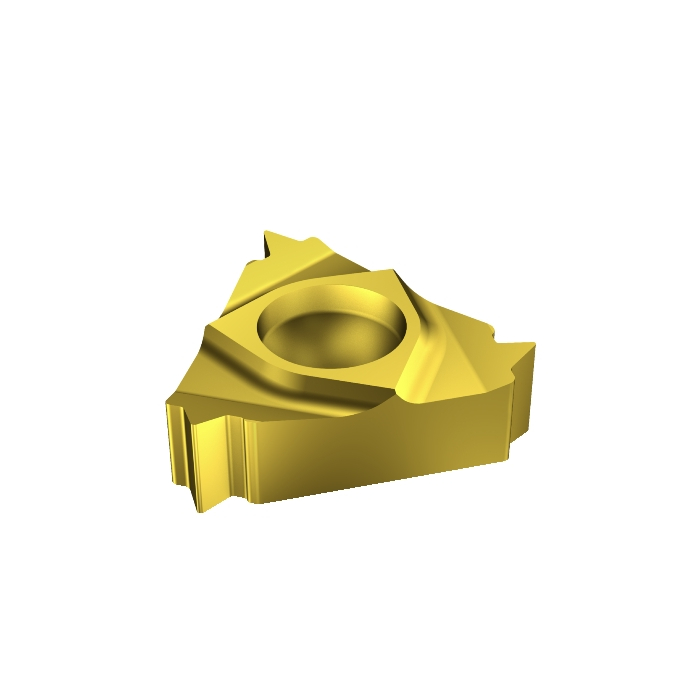

Sandvik Coromant L166.0L-11MM01-200 1020 T-Max™ U-Lock insert for thread turning
R 424,35
inc. vat
In stock
SKU
5734446
T-Max® U-Lock insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® U-Lock insert for thread turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.8g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| Insert Thickness | 3.175mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| HA - Theoretical Thread Height | 1.27mm |
| HB - Thread Height Difference | 0.12mm |
| TP - Thread Pitch | 2mm |
| PDX - Profile Distance Ex | 0.92mm |
| PDY - Profile Distance Ey | 0.58mm |
| ORDCODE | L166.0L-11MM01-200 1020 |
| CHANGEDATE | 2022-06-23 10:02:00.000 |
| STDNO - Standard Number | ISO 965-1998 |
| Hand | L |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 11 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TBI11L_1 |
| Grade | 1020 |
| COATING | PVD TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | A |
| THFT - Thread Form Type | M60 |
| TPT - Thread Profile Type | F |
| TTP - Thread Type | INT |
| TCTR - Thread Tolerance Class | IT 6 |
| CEDC - Cutting Edge Count | 3 |
| NT - Tooth Count | 1 |
