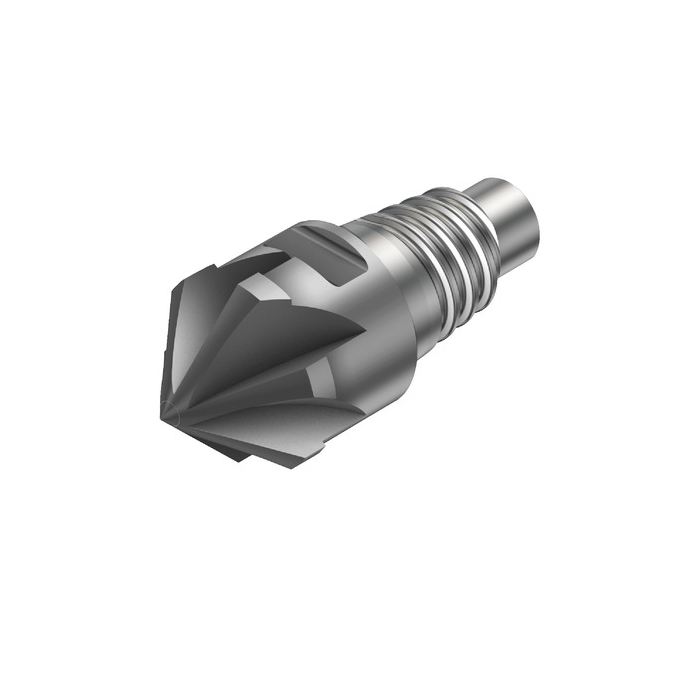

Sandvik Coromant 316-12CM600-12015G 1730 CoroMill™ 316 solid carbide head for chamfer milling

Name: Sandvik Coromant 316-12CM600-12015G 1730 CoroMill™ 316 solid carbide head for chamfer milling
SKU: 7611718
Price: 1982.60 ZAR
Availability: InStock

Be the first to review this product

R 1 982,60 inc. vat

In stock

SKU

7611718

CoroMill® 316 solid carbide head for chamfer milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for chamfer milling

More Information

More Information
DCON - Connection Diameter	11.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	14.5mm
BD - Body Diameter	11.7mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.038kg
OAL - Overall Length	28.3mm
OHX - Maximum Overhang	14.5mm
KAPR - Tool Cutting Edge Angle	15deg
APMX - Depth Of Cut Maximum	1.2mm
DC - Cutting Diameter	3mm
DN - Neck Diameter	11.7mm
GAMF - Radial Rake Angle	1.5deg
GAMP - Axial Rake Angle	1.5deg
DCX - Maximum Cutting Diameter	12mm
ORDCODE	316-12CM600-12015G 1730
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0120_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-22 16:07:00.000
Hand	R
Grade	1730
COATING	PVD AlTiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
