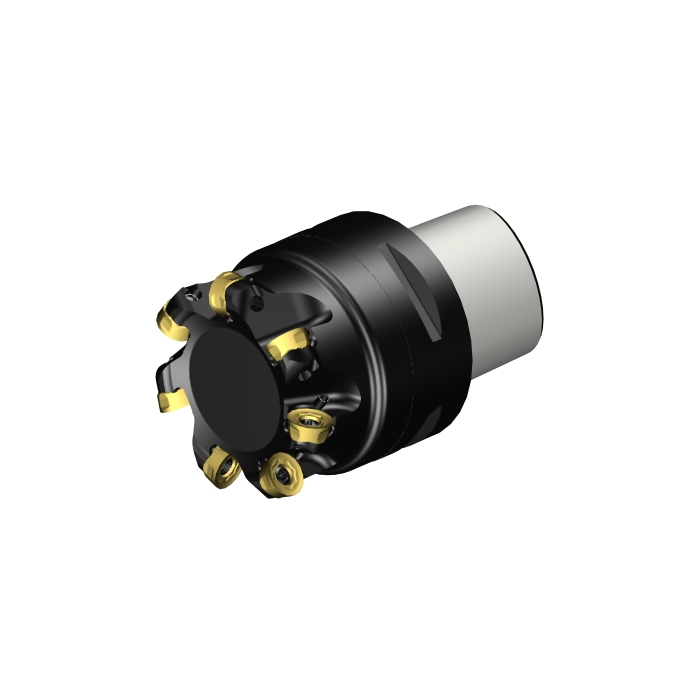

Sandvik Coromant 600-063C6-12H CoroMill™ 600 face milling cutter

Name: Sandvik Coromant 600-063C6-12H CoroMill™ 600 face milling cutter
SKU: 7082840
Price: 13839.10 ZAR
Availability: InStock

R 13 839,10 inc. vat

In stock

SKU

7082840

CoroMill® 600 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 600 face milling cutter

More Information
CP - Coolant Pressure	5000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
RPMX - Rotational Speed Maximum	167001/min
WT - Weight Of Item	1.413kg
OAL - Overall Length	98mm
OHX - Maximum Overhang	38mm
RMPX - Maximum Ramping Angle	2.5deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	12mm
Insert Thickness	5.2mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	51mm
DCF - Cutting Diameter Face Contact	51mm
DCX - Maximum Cutting Diameter	63mm
AZ - Maximum Plunge Depth	2mm
ORDCODE	600-063C6-12H
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-09-26 14:14:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NM1252_1
Hand	R
MIID - Master Insert Identification	600-1252
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	7
ZEFP - Peripheral Effective Cutting Edge Count	7
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
