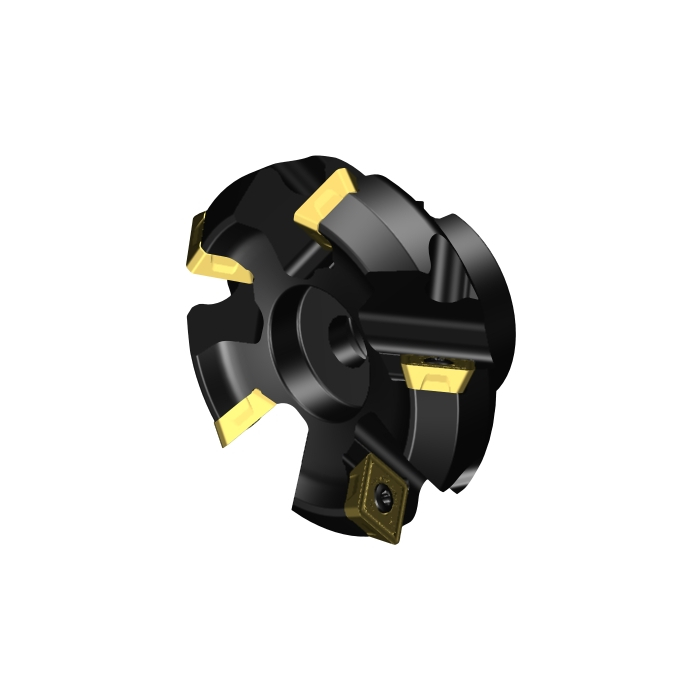

Sandvik Coromant RA245-080J25-18H CoroMill™ 245 face milling cutter

Name: Sandvik Coromant RA245-080J25-18H CoroMill™ 245 face milling cutter
SKU: 5739709
Price: 9211.50 ZAR
Availability: OutOfStock

R 9 211,50 inc. vat

Out of stock

SKU

5739709

CoroMill® 245 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 245 face milling cutter

More Information
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	50mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	61001/min
WT - Weight Of Item	1.045kg
OAL - Overall Length	50mm
OHX - Maximum Overhang	50mm
KAPR - Tool Cutting Edge Angle	45deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	4.3deg
LAMS - Inclination Angle	18deg
AN - Clearance Angle Major	20deg
IC - Inscribed Circle Diameter	18mm
Insert Thickness	6.1mm
APMX - Depth Of Cut Maximum	9.99998mm
DC - Cutting Diameter	80mm
DCF - Cutting Diameter Face Contact	80mm
GAMF - Radial Rake Angle	-10.01435342deg
GAMP - Axial Rake Angle	15.79729839deg
DCX - Maximum Cutting Diameter	101.323mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	RA245-080J25-18H
ADINTMS - Adaptive Interface Machine Direction	M_FDACA1_S1000_2
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-05-04 11:45:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MB18T6_1
Hand	R
MIID - Master Insert Identification	R245-18T6..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	18
CICT - Cutting Item Count	5
ZEFP - Peripheral Effective Cutting Edge Count	5
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
