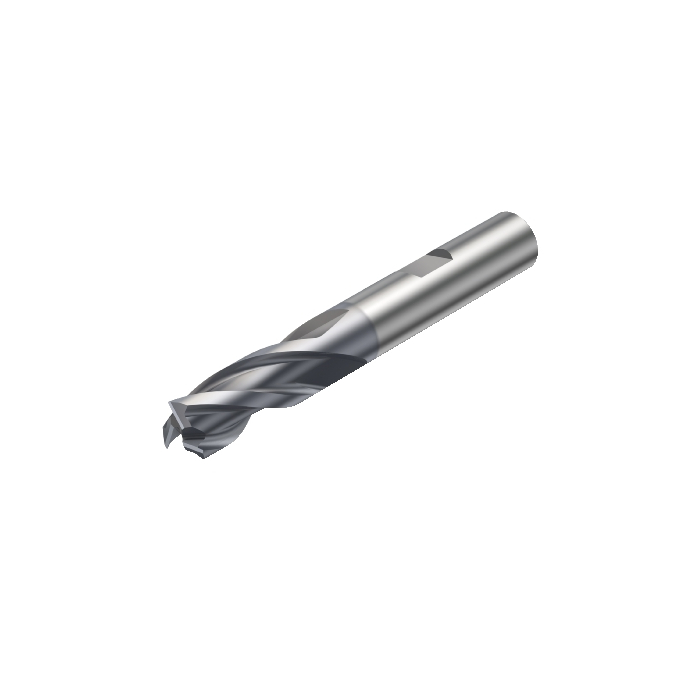

Sandvik Coromant 1P231-1500-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing

Name: Sandvik Coromant 1P231-1500-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing
SKU: 6259716
Price: 2705.95 ZAR
Availability: InStock

Be the first to review this product

R 2 705,95 inc. vat

In stock

SKU

6259716

CoroMill® Plura solid carbide end mill for Heavy roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy roughing

More Information

More Information
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	92mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	264001/min
WT - Weight Of Item	0.242kg
OAL - Overall Length	92mm
OHX - Maximum Overhang	44mm
LSC - Clamping Length	48mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	8deg
H - Shank Height	14.2mm
LU - Usable Length	26.5mm
MHD - Mounting Hole Distance	24mm
APMX - Depth Of Cut Maximum	26.5mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.2mm
DC - Cutting Diameter	15mm
DCF - Cutting Diameter Face Contact	14.6mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	9deg
GAMP - Axial Rake Angle	5.5deg
ULDR - Usable Length Diameter Ratio	1.766666666667
DCTOLL - Lower Cutting Diameter Tolerance	-0.07mm
DCTOLU - Upper Cutting Diameter Tolerance	-0.05mm
ORDCODE	1P231-1500-XB 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G1600_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:01:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	ISO3338-2
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
