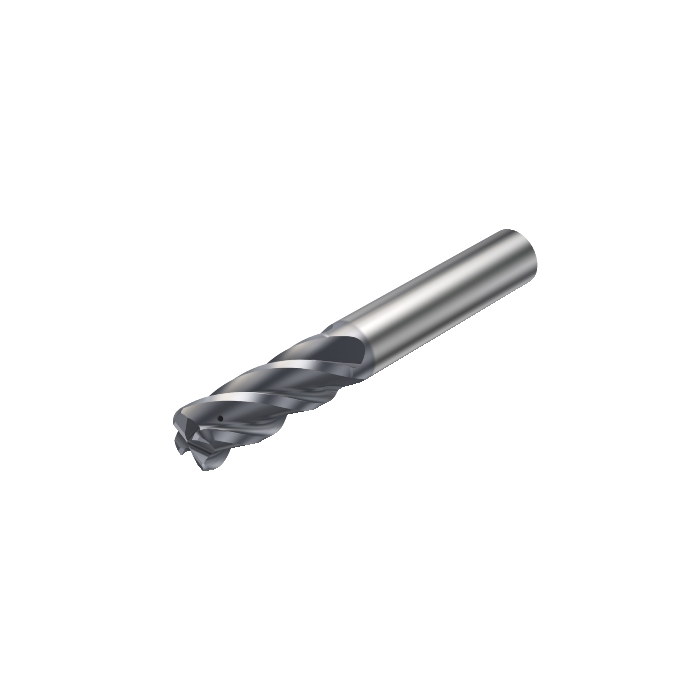

Sandvik Coromant 2S342-0600-050-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling Previous Sandvik Coromant 2S342-0600-050-PA 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Sandvik Coromant 2S342-0600-050CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

R 1 644,50 inc. vat
In stock
SKU
6732495
CoroMill® Plura solid carbide end mill for Heavy Duty milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy Duty milling
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 57mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.022kg
OAL - Overall Length 57mm
OHX - Maximum Overhang 21mm
LSC - Clamping Length 36mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 0.5mm
LU - Usable Length 13mm
APMX - Depth Of Cut Maximum 13mm
DC - Cutting Diameter 6mm
DCF - Cutting Diameter Face Contact 5mm
FHA - Flute Helix Angle 38deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 10.5deg
ULDR - Usable Length Diameter Ratio 2.166666666667
ORDCODE 2S342-0600-050CMA 1740
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:39:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1740
COATING PVD AlTiN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential True
