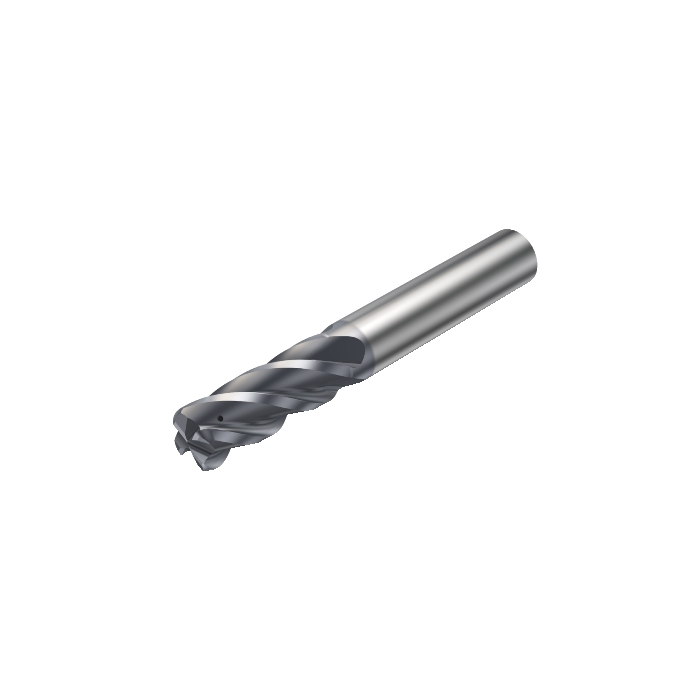

Sandvik Coromant 2N342-1588-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
Next
Sandvik Coromant 2S342-1588-229CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
Previous
Sandvik Coromant 2S342-1588-305CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
R 6 288,20
inc. vat
In stock
SKU
6732602
CoroMill® Plura solid carbide end mill for Heavy Duty milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy Duty milling
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 15.875mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 88.9mm |
RPMX - Rotational Speed Maximum | 251001/min |
WT - Weight Of Item | 0.206kg |
OAL - Overall Length | 88.9mm |
OHX - Maximum Overhang | 40.48mm |
LSC - Clamping Length | 48.42mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 3.048mm |
LU - Usable Length | 33.338mm |
APMX - Depth Of Cut Maximum | 33.338mm |
DC - Cutting Diameter | 15.875mm |
DCF - Cutting Diameter Face Contact | 9.779mm |
FHA - Flute Helix Angle | 38deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 10.5deg |
ULDR - Usable Length Diameter Ratio | 2.100031496063 |
ORDCODE | 2S342-1588-305CMA 1740 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R6250_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-08-25 15:47:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1740 |
COATING | PVD AlTiN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | True |
