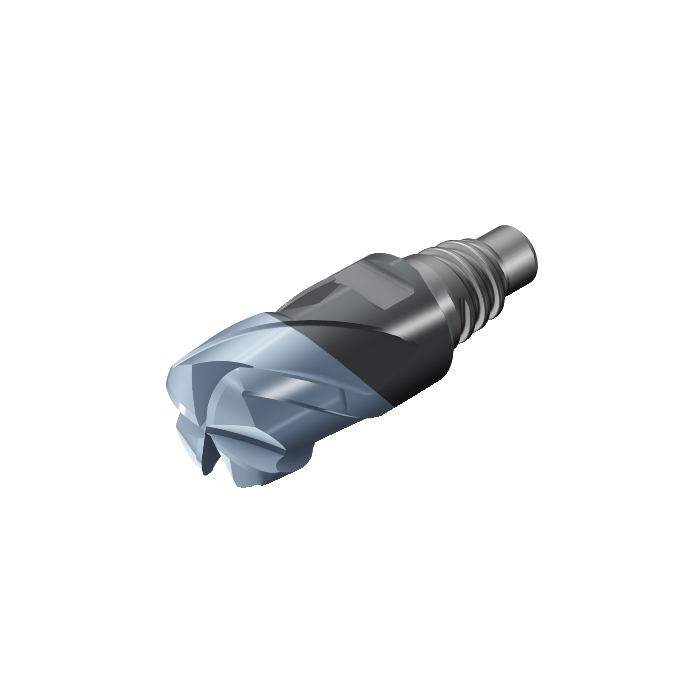

Sandvik Coromant 316-12HM438-12015D 6060 CoroMill™ 316 brazed ceramic head for High Speed roughing
R 6 113,40
inc. vat
In stock
SKU
7507829
CoroMill® 316 brazed ceramic head for High Speed roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 brazed ceramic head for High Speed roughing
| DCON - Connection Diameter | 11.7mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 18.5mm |
| RPMX - Rotational Speed Maximum | 350001/min |
| WT - Weight Of Item | 0.037kg |
| OAL - Overall Length | 32.3mm |
| OHX - Maximum Overhang | 18.5mm |
| KAPR - Tool Cutting Edge Angle | 31.57deg |
| RMPX - Maximum Ramping Angle | 3deg |
| RE - Corner Radius | 6mm |
| APMX - Depth Of Cut Maximum | 0.8mm |
| DC - Cutting Diameter | 12mm |
| DCF - Cutting Diameter Face Contact | 4.5mm |
| DN - Neck Diameter | 11.7mm |
| FHA - Flute Helix Angle | 38deg |
| GAMF - Radial Rake Angle | -5deg |
| GAMP - Axial Rake Angle | 3deg |
| REEQ - Corner Radius Equivalent | 2.1mm |
| ORDCODE | 316-12HM438-12015D 6060 |
| ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0120_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-09-13 12:52:00.000 |
| Hand | R |
| Grade | 6060 |
| SUBSTRATE | CS |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 4 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CCC - Center Cutting Capability | False |
| CPDF - Cutting Pitch Differential | False |
