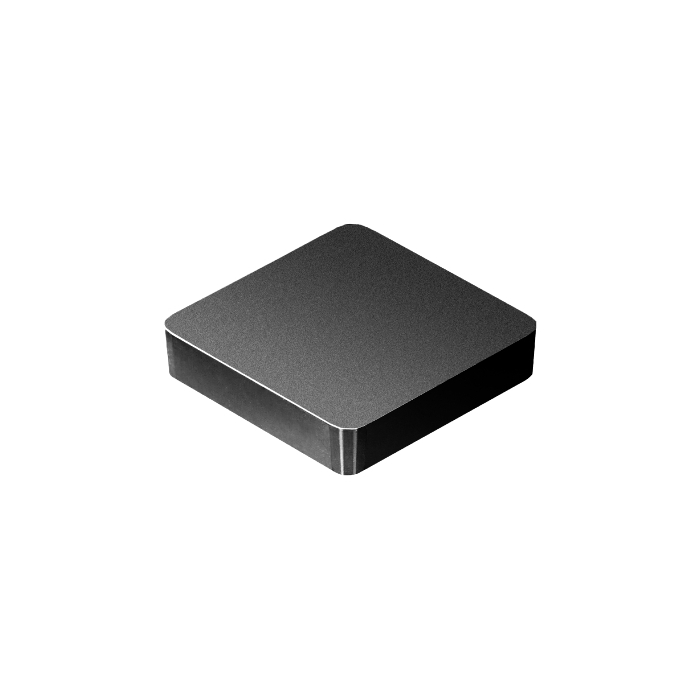

Sandvik Coromant SBAN 12 03 ZZ H1P Auto FS insert for milling
R 338,10
inc. vat
Out of stock
SKU
5749362
Auto FS insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
Auto FS insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 6.3g |
| AN - Clearance Angle Major | 5deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 0.5mm |
| Insert Thickness | 3.175mm |
| LE - Cutting Edge Effective Length | 11.5mm |
| L - Cutting Edge Length | 12.7mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 10.3mm |
| GAN - Insert Rake Angle | 0deg |
| APMX - Depth Of Cut Maximum | 8mm |
| KCH - Corner Chamfer | 45deg |
| CHW - Corner Chamfer Width | 1.2mm |
| BSR - Wiper Edge Radius | 2960mm |
| ORDCODE | SBAN 12 03 ZZ H1P |
| CHANGEDATE | 2022-04-06 03:03:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 12 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SB1203ZZ_1 |
| Grade | H1P |
| SUBSTRATE | HW |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | True |
