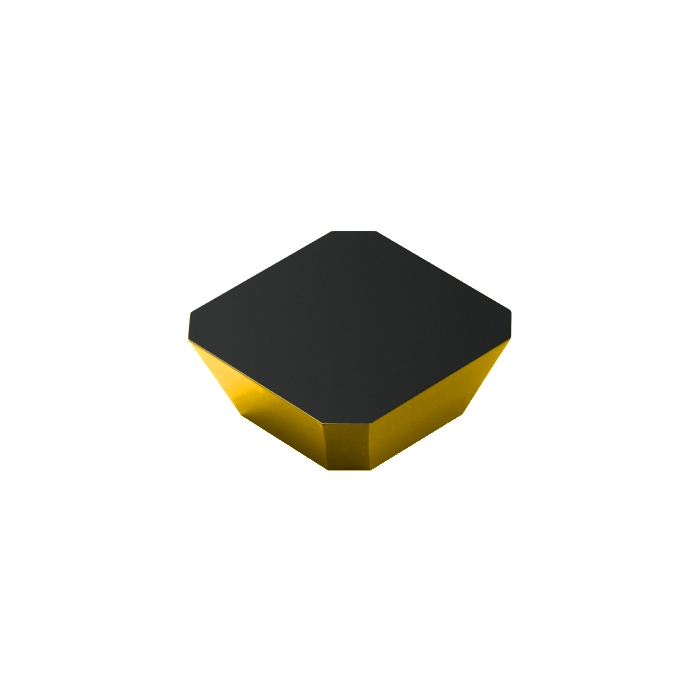

Sandvik Coromant SEKN 12 04 AZ 4230 Insert for milling

R 385,25 inc. vat
In stock
SKU
5749458
Insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
Insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 8.1g
AN - Clearance Angle Major 20deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 1.2mm
Insert Thickness 4.7625mm
LE - Cutting Edge Effective Length 9.6mm
L - Cutting Edge Length 12.7mm
KRINS - Major Cutting Edge Angle 45deg
BS - Wiper Edge Length 1.7mm
GAN - Insert Rake Angle 0deg
APMX - Depth Of Cut Maximum 6.4mm
ORDCODE SEKN 12 04 AZ 4230
CHANGEDATE 2022-04-06 03:04:00.000
Hand N
IFS - Insert Mounting Style Code 1
SC - Insert Shape Code S
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SE1204AZ_1
Grade 4230
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property True
