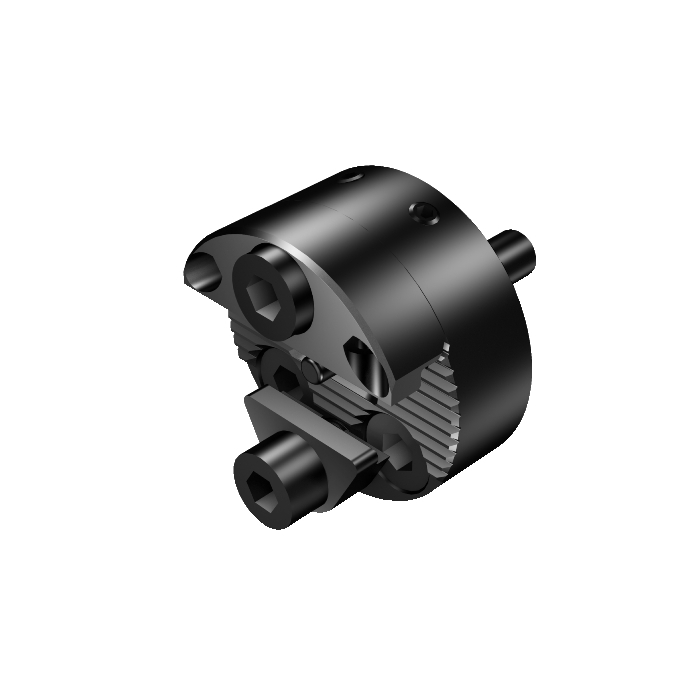

Sandvik Coromant SL-40 12-32-QC CoroTurn™ SL to CoroTurn™ SL quick change adaptor
R 10 617,95
inc. vat
In stock
SKU
5750109
CoroTurn® SL to CoroTurn® SL quick change adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® SL to CoroTurn® SL quick change adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 12mm |
| BD - Body Diameter | 40mm |
| LB - Body Length | 12mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 0.171kg |
| OAL - Overall Length | 29mm |
| OHX - Maximum Overhang | 12mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| OHN - Minimum Overhang | 12mm |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 21.825mm |
| ORDCODE | SL-40 12-32-QC |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDQ_C0320_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-23 15:25:00.000 |
| Hand | N |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
