Sandvik Coromant SL-PDJNR-32-15HP T-Max™ P head for turning

R 6 251,40 inc. vat
In stock
SKU
5856117
T-Max® P head for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P head for turning
More Information
CP - Coolant Pressure 8000000Pa
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 40mm
TQ - Torque 5Nm
WT - Weight Of Item 0.154kg
OAL - Overall Length 43.8mm
OHX - Maximum Overhang 40mm
KAPR - Tool Cutting Edge Angle 93deg
RMPX - Maximum Ramping Angle 27deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 27mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle -6deg
LAMS - Inclination Angle -7deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.79375mm
Insert Thickness 6.35mm
ORDCODE SL-PDJNR-32-15HP
ADINTMS - Adaptive Interface Machine Direction M_SLHDS_C0320_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 7
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:01:00.000
MTP - Clamping Type Code P
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_DN1506_1
Hand R

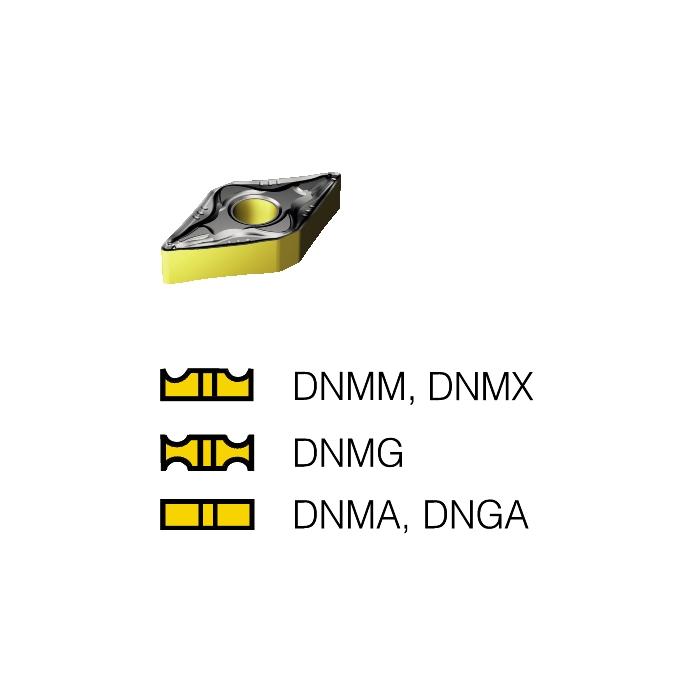

MIID - Master Insert Identification DNMG 15 06 08
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code D
SSC - Insert Seat Size Code 15
CXST - Coolant Exit Supply Type. 1
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
