Sandvik Coromant SL-SVLBR-32-16X-QC CoroTurn™ 107 head for back boring
R 5 461,35
inc. vat
Out of stock
SKU
5750347
CoroTurn® 107 head for back boring
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 head for back boring
| DCON - Connection Diameter | 32mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 14mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 0.063kg |
| OAL - Overall Length | 31mm |
| OHX - Maximum Overhang | 14mm |
| KAPR - Tool Cutting Edge Angle | 95deg |
| RMPX - Maximum Ramping Angle | 45deg |
| DMIN - Minimum Bore Diameter | 40mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 26mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | -6.5deg |
| AN - Clearance Angle Major | 5deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.79375mm |
| Insert Thickness | 4.7625mm |
| H - Shank Height | 14.7mm |
| LPR - Protruding Length | 31mm |
| ORDCODE | SL-SVLBR-32-16X-QC |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDQ_C0320_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 14:50:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_VB1604_1 |
| Hand | R |

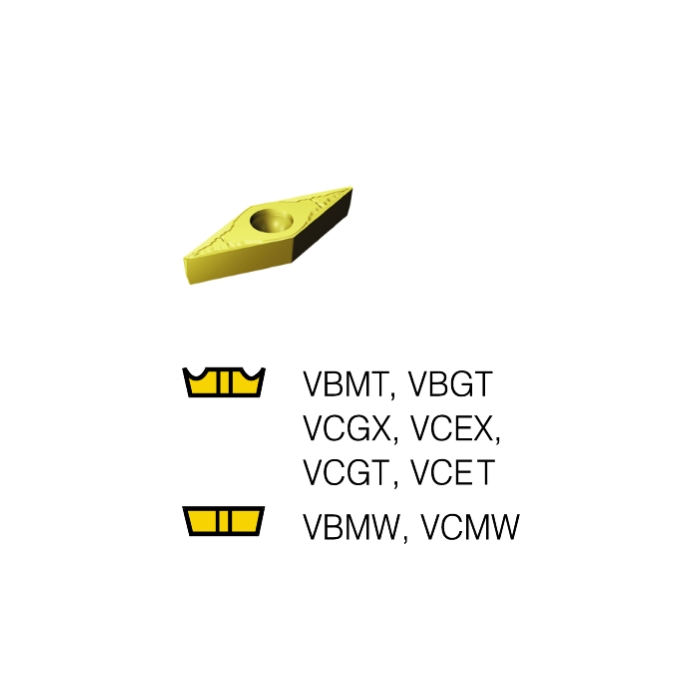

| MIID - Master Insert Identification | VBMT 16 04 08 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | V |
| SSC - Insert Seat Size Code | 16 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
