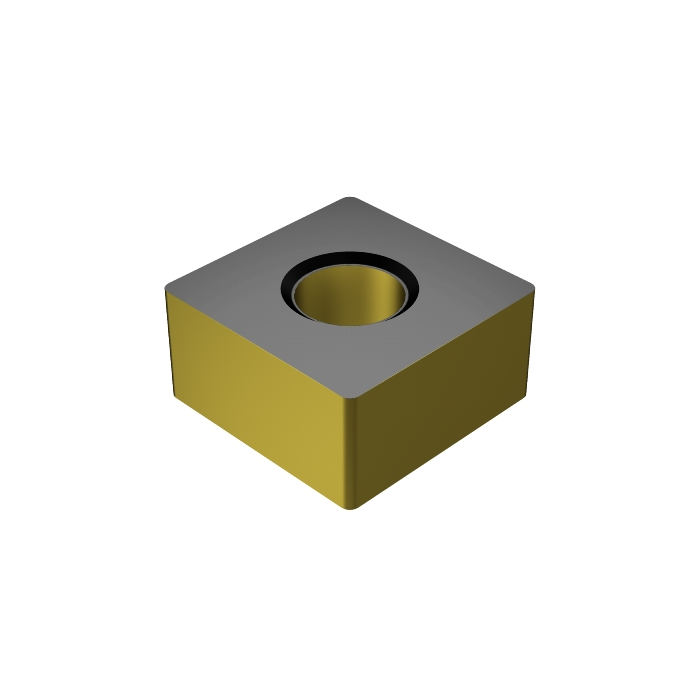

Sandvik Coromant SNMA 15 06 16-KR 3225 T-Max™ P insert for turning

R 369,15 inc. vat
In stock
SKU
6868598
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 20.2g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 15.875mm
RE - Corner Radius 1.5875mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 6.35mm
LE - Cutting Edge Effective Length 14.275mm
L - Cutting Edge Length 15.875mm
ORDCODE SNMA 15 06 16-KR 3225
CHANGEDATE 2021-12-17 21:43:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code S
SSC - Insert Seat Size Code 15
CUTINT_SIZESHAPE - Insert Size And Shape MISO_SN1506_1
Grade 3225
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation KR
CEDC - Cutting Edge Count 8
WEP - Wiper Edge Property False
