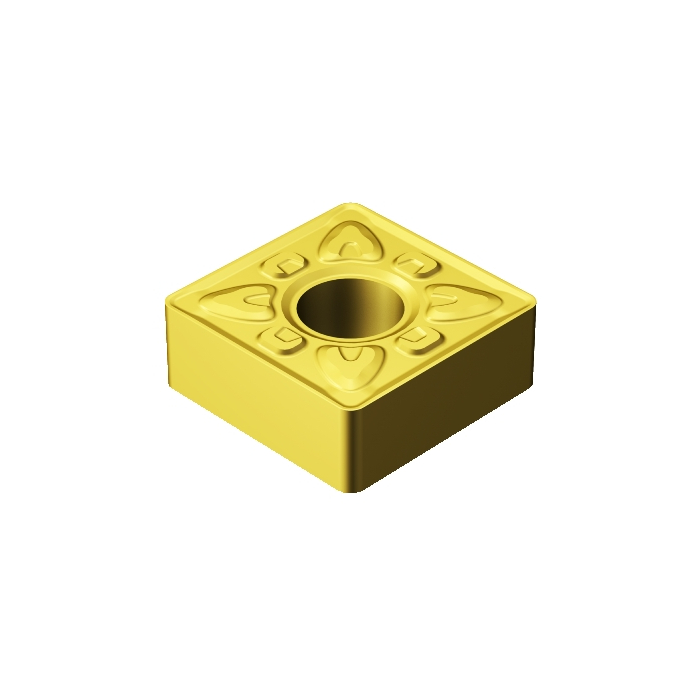

Sandvik Coromant SNMG 19 06 16-XMR GC30 T-Max™ P insert for turning
R 516,35
inc. vat
Out of stock
SKU
6136072
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.029kg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 19.05mm |
| RE - Corner Radius | 1.5875mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 7.925mm |
| LE - Cutting Edge Effective Length | 17.45mm |
| L - Cutting Edge Length | 19.05mm |
| ORDCODE | SNMG 19 06 16-XMR GC30 |
| CHANGEDATE | 2021-12-17 20:44:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 19 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SN1906_1 |
| Grade | GC30 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | XMR |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | False |
