Sandvik Coromant SRSCL 20 4D CoroTurn™ 107 shank tool for turning
R 2 638,10
inc. vat
In stock
SKU
5751105
CoroTurn® 107 shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 shank tool for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 152.4mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 1.001kg |
| OAL - Overall Length | 152.4mm |
| OHX - Maximum Overhang | 36.73mm |
| LSC - Clamping Length | 115.67mm |
| RMPX - Maximum Ramping Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 38.1mm |
| HF - Functional Height | 31.75mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 6.35mm |
| Insert Thickness | 4.7625mm |
| H - Shank Height | 31.75mm |
| LU - Usable Length | 25.4mm |
| B - Shank Width | 31.75mm |
| ORDCODE | SRSCL 20 4D |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B2020_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-07-28 18:04:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RC1204_1 |
| Hand | L |

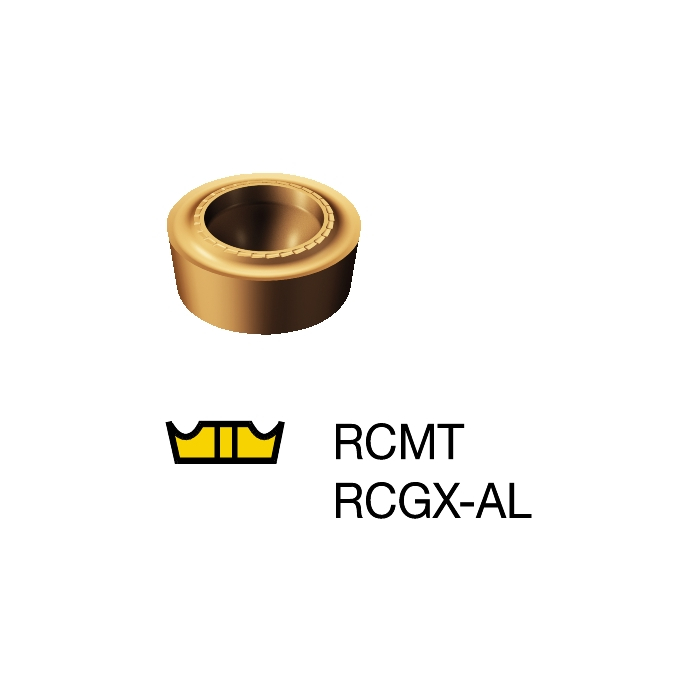

| MIID - Master Insert Identification | RCMT 12 04 00 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 12 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
