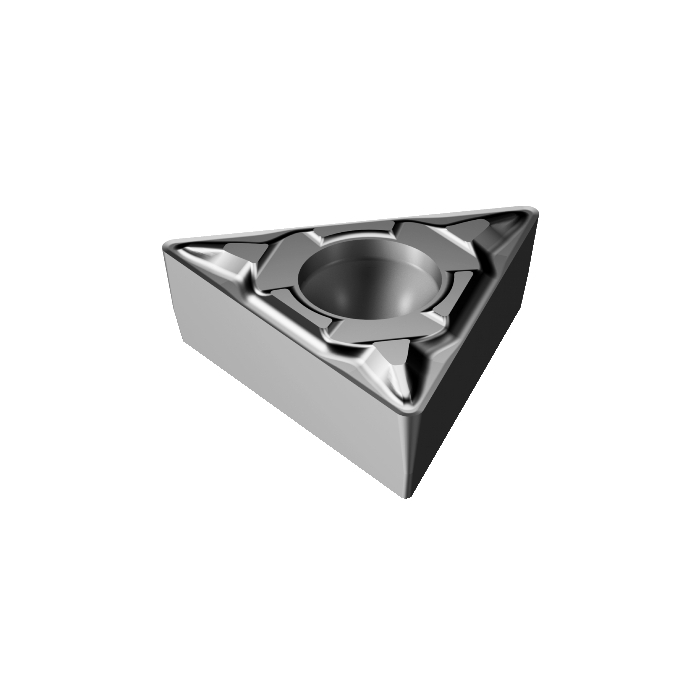

Sandvik Coromant TCMT 06 T1 04-MF 1105 CoroTurn™ 107 insert for turning

R 154,10 inc. vat
In stock
SKU
5752807
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.5g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 3.96875mm
RE - Corner Radius 0.3969mm
Insert Thickness 1.98mm
D1 - Fixing Hole Diameter 2.2mm
LE - Cutting Edge Effective Length 6.22mm
L - Cutting Edge Length 6.874mm
ORDCODE TCMT 06 T1 04-MF 1105
CHANGEDATE 2021-12-17 19:26:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code T
SSC - Insert Seat Size Code 06
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TC06T1_1
Grade 1105
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MF
CEDC - Cutting Edge Count 3
WEP - Wiper Edge Property False
