R 541,65
inc. vat
Out of stock
SKU
5752952
Top Lok insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days

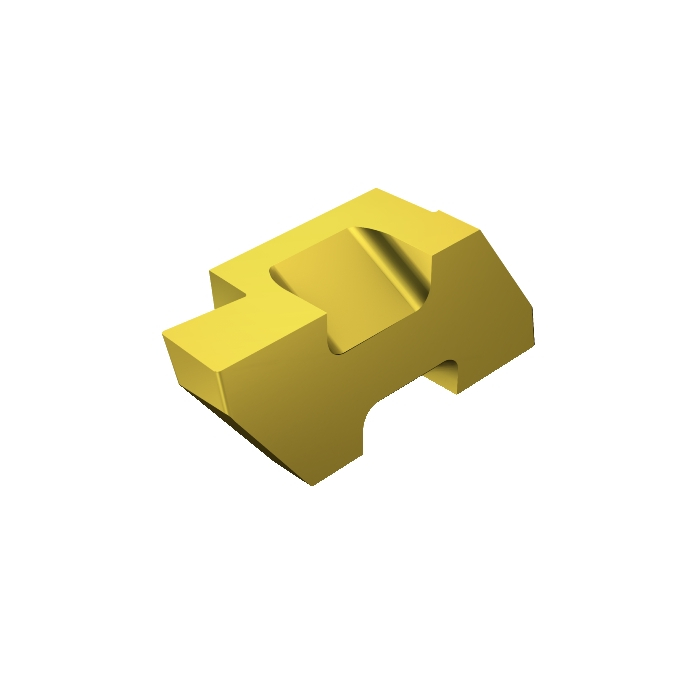

Top Lok insert for grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 2.1g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 10deg |
Insert Thickness | 5.5626mm |
CW - Cutting Width | 1.5748mm |
CWTOLL - Cutting Width Lower Tolerance | -0.0254mm |
CWTOLU - Cutting Width Upper Tolerance | 0.0254mm |
REL - Corner Radius Left | 0.1905mm |
RER - Corner Radius Right | 0.1905mm |
CDX - Cutting Depth Maximum | 2.794mm |
W1 - Insert Width | 3.81mm |
ORDCODE | TLG-2062L 2135 |
CHANGEDATE | 2022-06-23 11:11:00.000 |
Hand | L |
IFS - Insert Mounting Style Code | 5 |
SSC - Insert Seat Size Code | 2 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CL2L_1 |
Grade | 2135 |
COATING | CVD TiCrN+Al2O3+TiN |
SUBSTRATE | HC |
CEDC - Cutting Edge Count | 2 |
