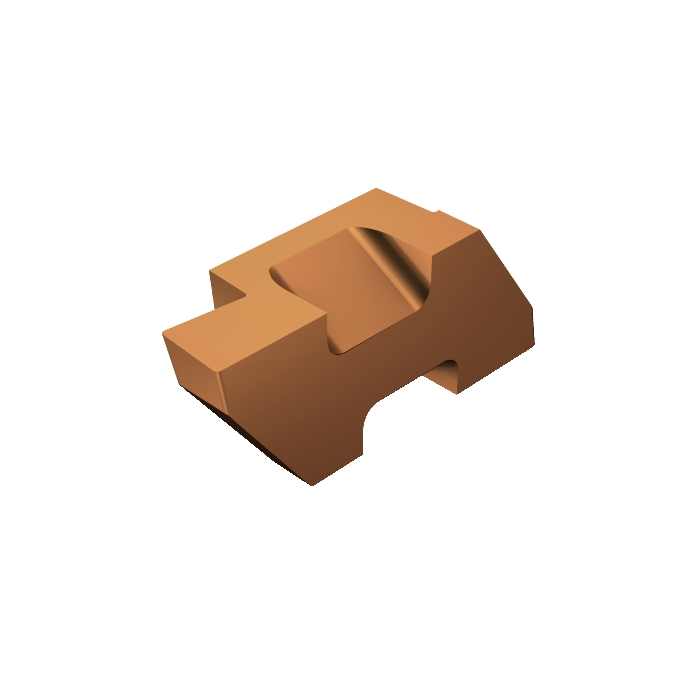

Sandvik Coromant TLG-3072L 1125 Top Lok insert for grooving

R 717,60 inc. vat
In stock
SKU
5753082
Top Lok insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok insert for grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 9.3g
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 10deg
Insert Thickness 8.7376mm
CW - Cutting Width 1.8288mm
CWTOLL - Cutting Width Lower Tolerance -0.0254mm
CWTOLU - Cutting Width Upper Tolerance 0.0254mm
REL - Corner Radius Left 0.1905mm
RER - Corner Radius Right 0.1905mm
CDX - Cutting Depth Maximum 2.388mm
W1 - Insert Width 4.953mm
ORDCODE TLG-3072L 1125
CHANGEDATE 2022-06-23 11:12:00.000
Hand L
IFS - Insert Mounting Style Code 5
SSC - Insert Seat Size Code 3
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CL3L_1
Grade 1125
COATING PVD TiAlN
SUBSTRATE HC
CEDC - Cutting Edge Count 2
