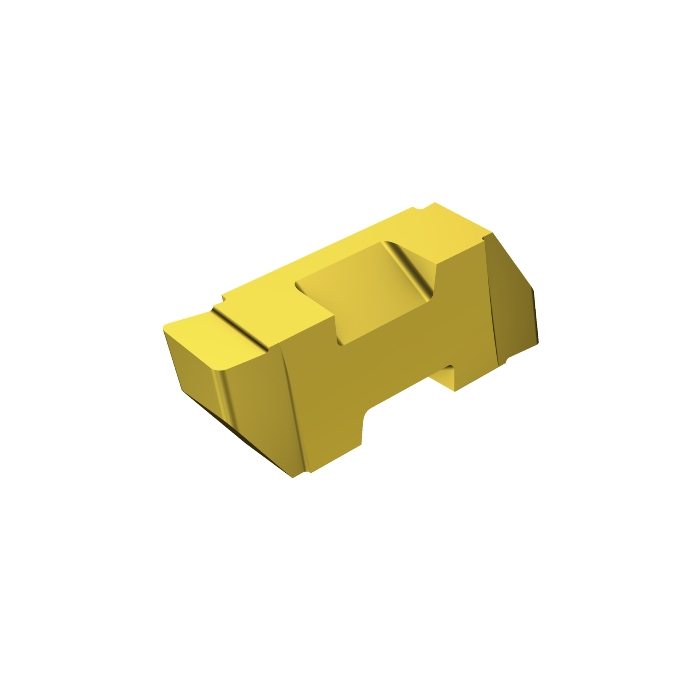

Sandvik Coromant TLGP-3142L 2135 Top Lok insert for grooving
R 652,05
inc. vat
In stock
SKU
5753320
Top Lok insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok insert for grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 11.7g |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 10deg |
| Insert Thickness | 8.7376mm |
| CW - Cutting Width | 3.6068mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.0254mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.0254mm |
| REL - Corner Radius Left | 0.3175mm |
| RER - Corner Radius Right | 0.3175mm |
| GAN - Insert Rake Angle | 10deg |
| CDX - Cutting Depth Maximum | 3.81mm |
| W1 - Insert Width | 4.953mm |
| ORDCODE | TLGP-3142L 2135 |
| CHANGEDATE | 2022-06-23 11:13:00.000 |
| Hand | L |
| IFS - Insert Mounting Style Code | 5 |
| SSC - Insert Seat Size Code | 3 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CL3L_1 |
| Grade | 2135 |
| COATING | CVD TiCrN+Al2O3+TiN |
| SUBSTRATE | HC |
| CEDC - Cutting Edge Count | 2 |
