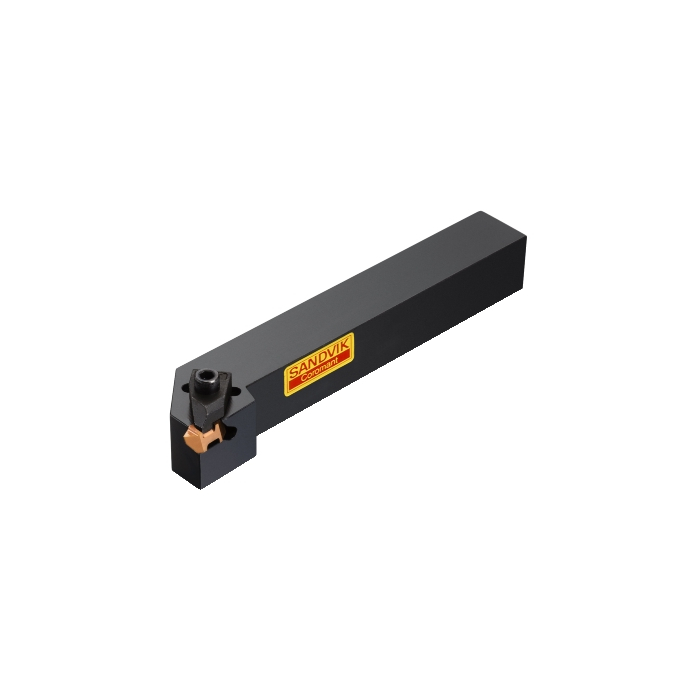

Sandvik Coromant TLSL-122B Top Lok shank tool for parting & grooving
R 2 512,75
inc. vat
In stock
SKU
5753585
Top Lok shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok shank tool for parting and grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 114.3mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 0.32kg |
| OAL - Overall Length | 114.3mm |
| OHX - Maximum Overhang | 22.352mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 25.4mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 5.5626mm |
| H - Shank Height | 19.05mm |
| B - Shank Width | 19.05mm |
| CDX - Cutting Depth Maximum | 3.175mm |
| W1 - Insert Width | 3.81mm |
| ORDCODE | TLSL-122B |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B1212_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 23:34:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CL2L_1 |
| Hand | L |
| MIID - Master Insert Identification | TLG-2125L |
| SSC - Insert Seat Size Code | 2 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
