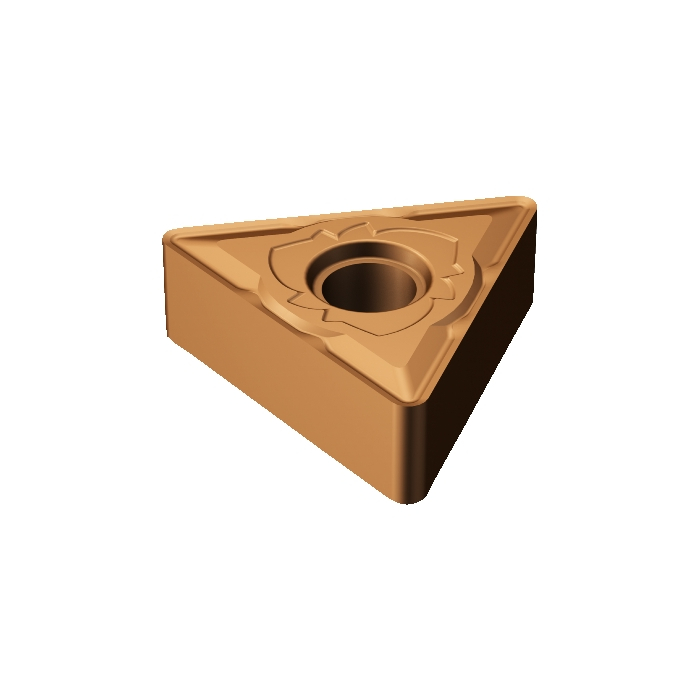

Sandvik Coromant TNMG 16 04 12-SM 1125 T-Max™ P insert for turning

R 204,70 inc. vat
Out of stock
SKU
5915108
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 6.8g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 1.1906mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 3.81mm
LE - Cutting Edge Effective Length 4.8mm
L - Cutting Edge Length 16.4978mm
ORDCODE TNMG 16 04 12-SM 1125
CHANGEDATE 2021-12-17 20:34:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code T
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TN1604_1
Grade 1125
COATING PVD TiAlN+TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation SM
CEDC - Cutting Edge Count 6
WEP - Wiper Edge Property False
