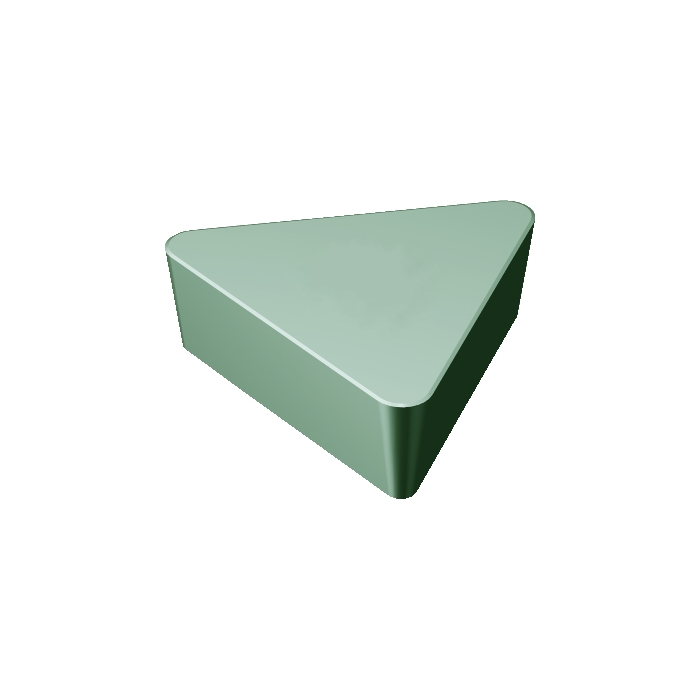

Sandvik Coromant TPGN110308T01020 670 T-Max™ insert for turning

R 523,25 inc. vat
In stock
SKU
5754901
T-Max® insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.5g
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.175mm
LE - Cutting Edge Effective Length 10.1985mm
L - Cutting Edge Length 10.999mm
BN - Face Land Width 0.1mm
GB - Face Land Angle 20deg
ORDCODE TPGN110308T01020 670
CHANGEDATE 2021-12-17 19:42:00.000
Hand N
IFS - Insert Mounting Style Code 1
SC - Insert Shape Code T
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TP1103_1
Grade 670
SUBSTRATE CR
CEDC - Cutting Edge Count 3
WEP - Wiper Edge Property False
