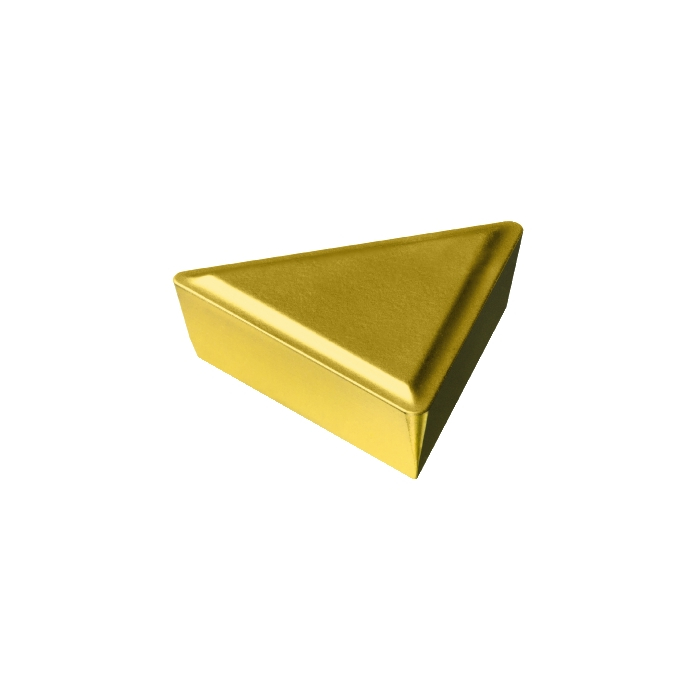

Sandvik Coromant TPMR 16 03 08 2025 T-Max™ S insert for turning

R 185,15 inc. vat
In stock
SKU
5754904
T-Max® S insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 5.5g
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.175mm
LE - Cutting Edge Effective Length 15.6978mm
L - Cutting Edge Length 16.4978mm
ORDCODE TPMR 16 03 08 2025
CHANGEDATE 2021-12-17 19:42:00.000
Hand N
IFS - Insert Mounting Style Code 1
SC - Insert Shape Code T
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_TP1603_1
Grade 2025
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation 53
CEDC - Cutting Edge Count 3
WEP - Wiper Edge Property False
