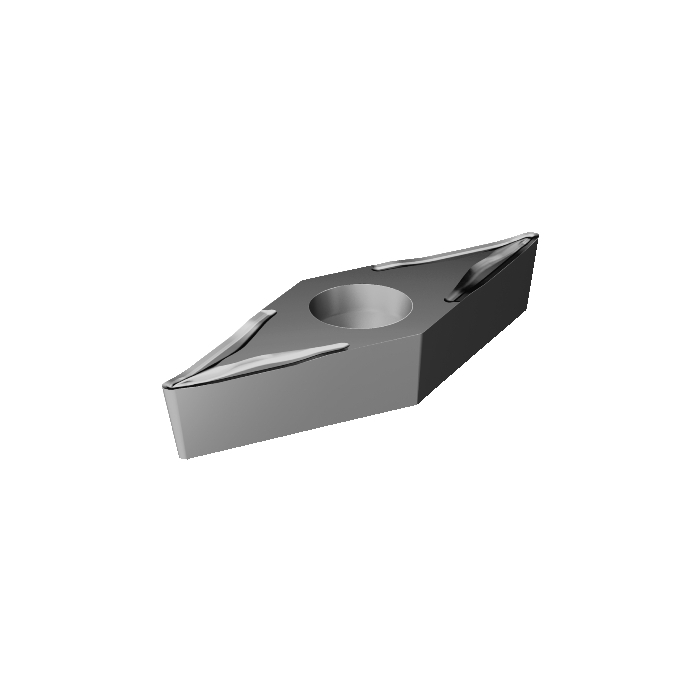

Sandvik Coromant VBMT 16 04 08-UM H13A CoroTurn™ 107 insert for turning

R 220,80 inc. vat
In stock
SKU
5755745
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 9g
AN - Clearance Angle Major 5deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 15.8063mm
L - Cutting Edge Length 16.6063mm
ORDCODE VBMT 16 04 08-UM H13A
CHANGEDATE 2021-12-17 19:50:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code V
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_VB1604_1
Grade H13A
SUBSTRATE HW
CBMD - Chip Breaker Manufacturer's Designation UM
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
