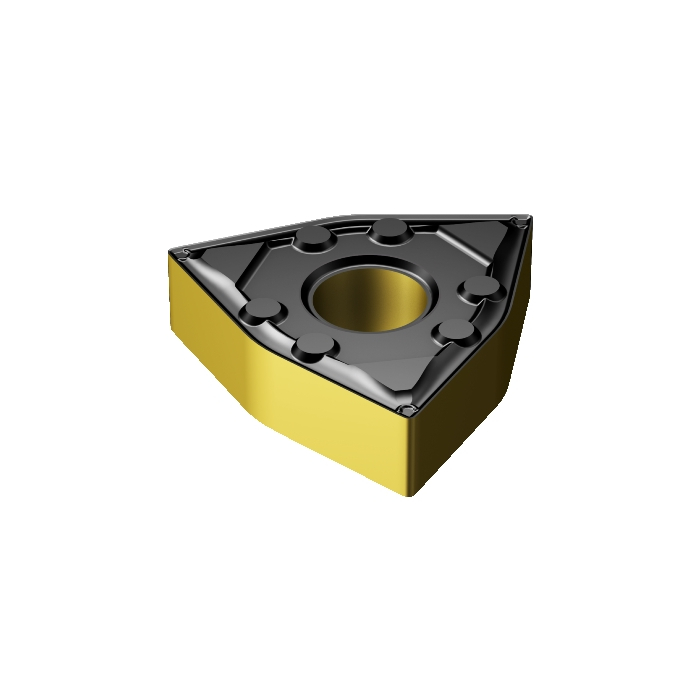

Sandvik Coromant WNMG 06 04 08-WMX 4305 T-Max™ P insert for turning
Next
Sandvik Coromant WNMG 06 04 08-QM 4305 T-Max™ P insert for turning
Previous
![Sandvik Coromant WNMG 06 04 08-WMX 4305 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/59609f630/sandvik-coromant-wnmg-06-04-08-wmx-4305-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant WNMG 06 04 08-QM 4305 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/5960755fb/sandvik-coromant-wnmg-06-04-08-qm-4305-t-maxtm-p-insert-for-turning.jpg)
R 246,10
inc. vat
In stock
SKU
6707476
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 5.5g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 3.81mm |
LE - Cutting Edge Effective Length | 5.7155mm |
L - Cutting Edge Length | 6.5155mm |
KRINS - Major Cutting Edge Angle | 95deg |
BS - Wiper Edge Length | 0.7mm |
ORDCODE | WNMG 06 04 08-WF 4305 |
CHANGEDATE | 2022-09-22 11:49:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 06 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_WN0604_1 |
Grade | 4305 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | WF |
CEDC - Cutting Edge Count | 6 |
WEP - Wiper Edge Property | True |
