R 1 053,40
inc. vat
In stock
SKU
5757086

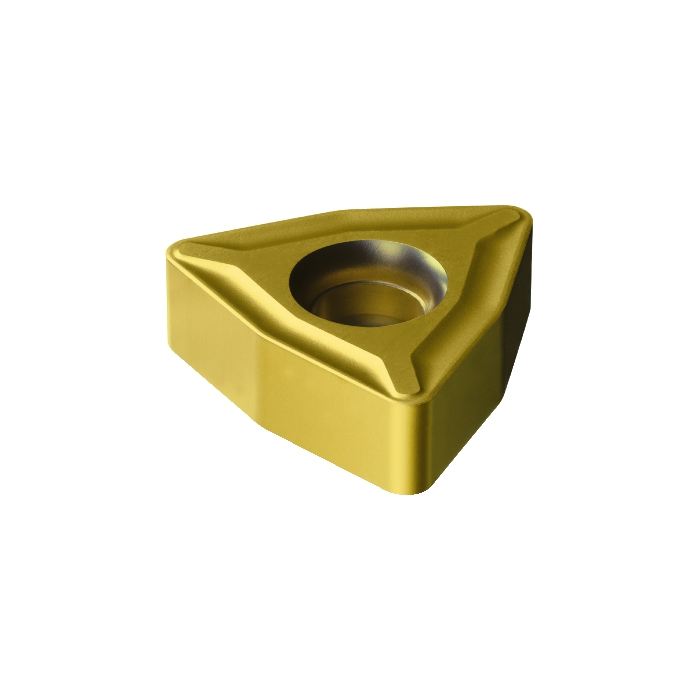

Insert for bar peeling
Reliable nationwide shipping
Delivery in 4 - 5 days
Insert for bar peeling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.064kg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 22.225mm |
RE - Corner Radius | 11mm |
Insert Thickness | 9.525mm |
D1 - Fixing Hole Diameter | 7.93mm |
LE - Cutting Edge Effective Length | 13mm |
L - Cutting Edge Length | 15.2028mm |
KRINS - Major Cutting Edge Angle | 120deg |
BS - Wiper Edge Length | 5.3mm |
APMX - Depth Of Cut Maximum | 3mm |
KCH - Corner Chamfer | 100deg |
CHW - Corner Chamfer Width | 11mm |
ORDCODE | WNMX 15 09 31-MM 2025 |
CHANGEDATE | 2021-12-17 20:02:00.000 |
Hand | L |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 15 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_WN1509_1 |
Grade | 2025 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | MM |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | True |
