Sandvik Coromant WPMT 02 01 04-MF 1125 CoroTurn™ 111 insert for turning Previous Sandvik Coromant WPMT 02 01 04-MF 1125 CoroTurn™ 111 insert for turning

Sandvik Coromant WPMT 02 01 04-MF 2015 CoroTurn™ 111 insert for turning

R 147,20 inc. vat
In stock
SKU
5757200

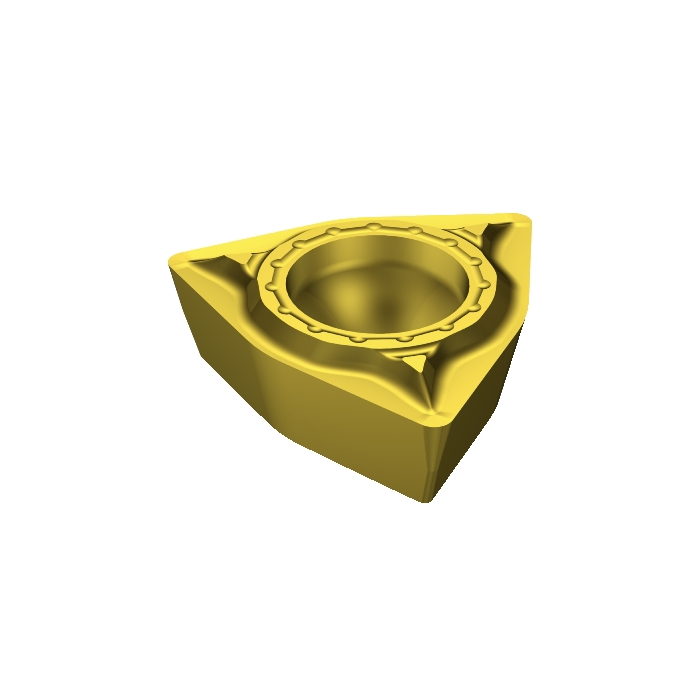

CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.3g
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 3.96875mm
RE - Corner Radius 0.3969mm
Insert Thickness 1.5875mm
D1 - Fixing Hole Diameter 2.2mm
LE - Cutting Edge Effective Length 2.2062mm
L - Cutting Edge Length 2.6062mm
ORDCODE WPMT 02 01 04-MF 2015
CHANGEDATE 2021-12-17 20:02:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code W
SSC - Insert Seat Size Code 02
CUTINT_SIZESHAPE - Insert Size And Shape MISO_WP0201_1
Grade 2015
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MF
CEDC - Cutting Edge Count 3
WEP - Wiper Edge Property False
