Sandvik Coromant 570-DVUNR-80-16X T-Max™ P head for back boring

R 9 527,75 inc. vat
Out of stock
SKU
5856125
T-Max® P head for back boring
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P head for back boring
More Information
DCON - Connection Diameter 80mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 20mm
TQ - Torque 3Nm
WT - Weight Of Item 0.511kg
OAL - Overall Length 45mm
OHX - Maximum Overhang 20mm
KAPR - Tool Cutting Edge Angle 93deg
RMPX - Maximum Ramping Angle 30deg
DMIN - Minimum Bore Diameter 100mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 64mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle -6deg
LAMS - Inclination Angle -8deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.79375mm
Insert Thickness 4.7625mm
H - Shank Height 37.5mm
LPR - Protruding Length 45mm
ORDCODE 570-DVUNR-80-16X
ADINTMS - Adaptive Interface Machine Direction M_SLHDQ_C0800_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:02:00.000
MTP - Clamping Type Code D
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_VN1604_1
Hand R

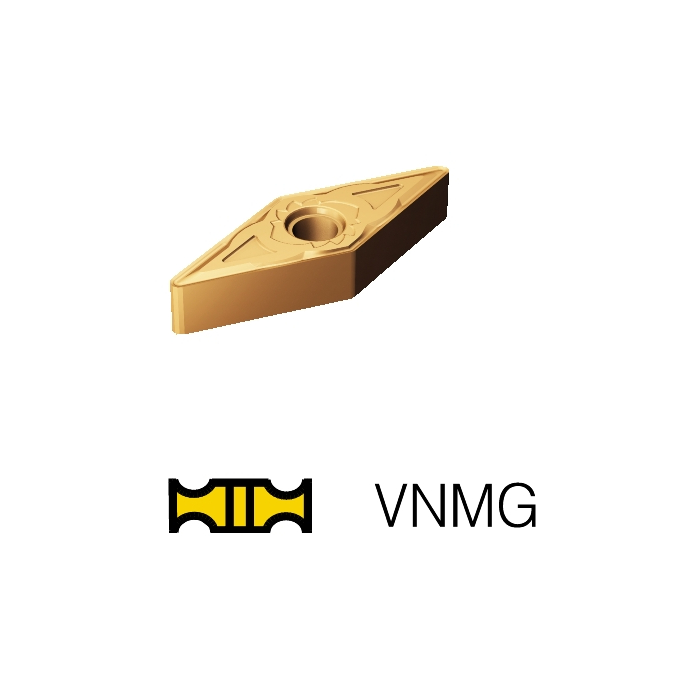

MIID - Master Insert Identification VNMG 16 04 08
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code V
SSC - Insert Seat Size Code 16
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
