Sandvik Coromant A05K-SCLPR 2 CoroTurn™ 111 boring bar for turning
Next
Sandvik Coromant A06H-STFPL 06 CoroTurn™ 111 boring bar for turning
Previous
![Sandvik Coromant A05K-SCLPR 2 CoroTurn™ 111 boring bar for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/410504a38/sandvik-coromant-a05k-sclpr-2-coroturntm-111-boring-bar-for-turning.jpg)
![Sandvik Coromant A06H-STFPL 06 CoroTurn™ 111 boring bar for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/41048efe4/sandvik-coromant-a06h-stfpl-06-coroturntm-111-boring-bar-for-turning.jpg)
R 2 190,75
inc. vat
In stock
SKU
5721371
CoroTurn® 111 boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 boring bar for turning
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 7.9375mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 101.6mm |
BD - Body Diameter | 7.9375mm |
TQ - Torque | 0.6Nm |
WT - Weight Of Item | 0.033kg |
OAL - Overall Length | 101.6mm |
OHX - Maximum Overhang | 31.75mm |
LSC - Clamping Length | 89.7mm |
KAPR - Tool Cutting Edge Angle | 95deg |
RMPX - Maximum Ramping Angle | 0deg |
DMIN - Minimum Bore Diameter | 10.5mm |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
OHN - Minimum Overhang | 11.9063mm |
WF - Functional Width | 5.5626mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 2deg |
LAMS - Inclination Angle | -9deg |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 3.96875mm |
RE - Corner Radius | 0.1984375mm |
Insert Thickness | 1.5875mm |
ORDCODE | A05H-SWLPR 1.2-R |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R3125_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-06 23:01:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_WP0201_1 |
Hand | R |

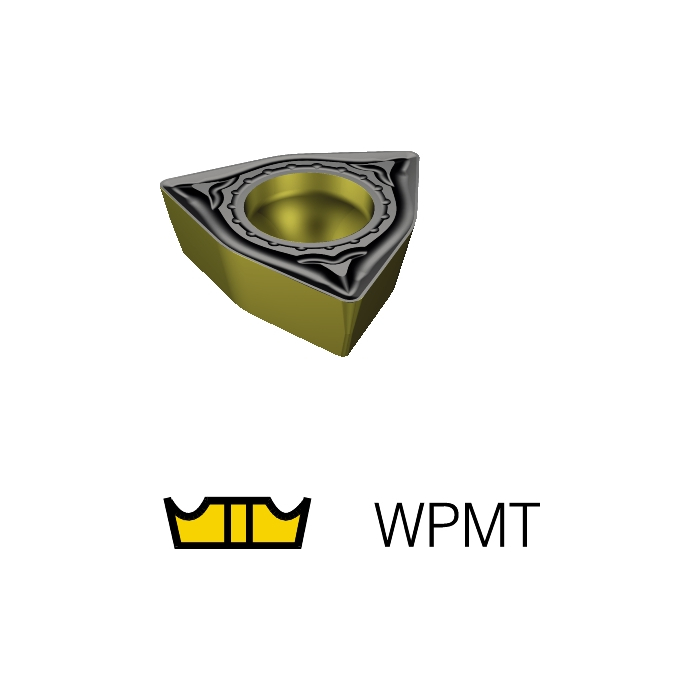

MIID - Master Insert Identification | WPMT 02 01 02 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 02 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
LOCAP - Location Aid Property | True |
