Sandvik Coromant A10K-SWLPR 04-R CoroTurn™ 111 boring bar for turning
Next
Sandvik Coromant A10K-SWLPL 04-R CoroTurn™ 111 boring bar for turning
Previous
![Sandvik Coromant A10K-SWLPR 04-R CoroTurn™ 111 boring bar for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/41449171d/sandvik-coromant-a10k-swlpr-04-r-coroturntm-111-boring-bar-for-turning.jpg)
![Sandvik Coromant A10K-SWLPL 04-R CoroTurn™ 111 boring bar for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/41447ae7c/sandvik-coromant-a10k-swlpl-04-r-coroturntm-111-boring-bar-for-turning.jpg)
R 2 190,75
inc. vat
In stock
SKU
5721914
CoroTurn® 111 boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 boring bar for turning
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 10mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 125mm |
BD - Body Diameter | 10mm |
TQ - Torque | 0.9Nm |
WT - Weight Of Item | 0.058kg |
OAL - Overall Length | 125mm |
OHX - Maximum Overhang | 40mm |
LSC - Clamping Length | 110mm |
KAPR - Tool Cutting Edge Angle | 95deg |
RMPX - Maximum Ramping Angle | 0deg |
DMIN - Minimum Bore Diameter | 12mm |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
OHN - Minimum Overhang | 15mm |
WF - Functional Width | 6mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 4deg |
LAMS - Inclination Angle | -7deg |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 6.35mm |
RE - Corner Radius | 0.396875mm |
Insert Thickness | 2.38125mm |
H - Shank Height | 9mm |
ORDCODE | A10K-SWLPR 04 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G1000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 14:58:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_WP0402_1 |
Hand | R |

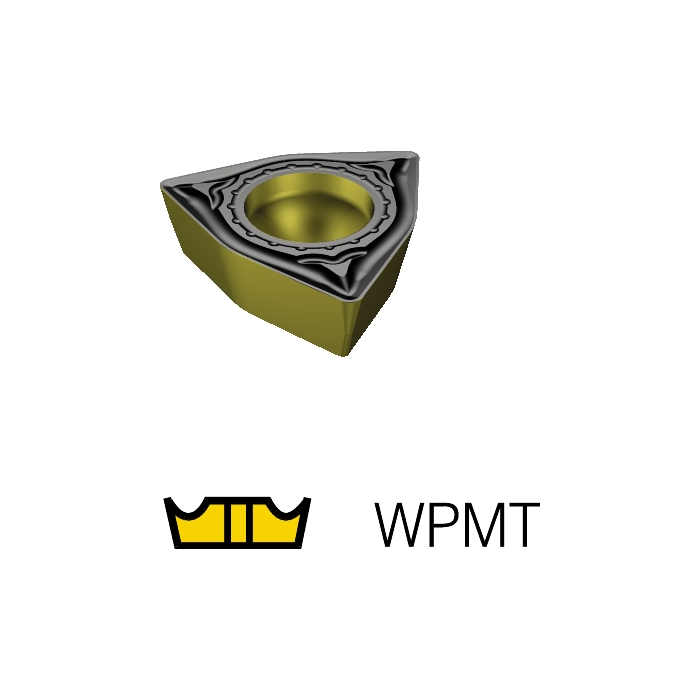

MIID - Master Insert Identification | WPMT 04 02 04 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 04 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
