R 8 809,00
inc. vat
In stock
SKU
5726975

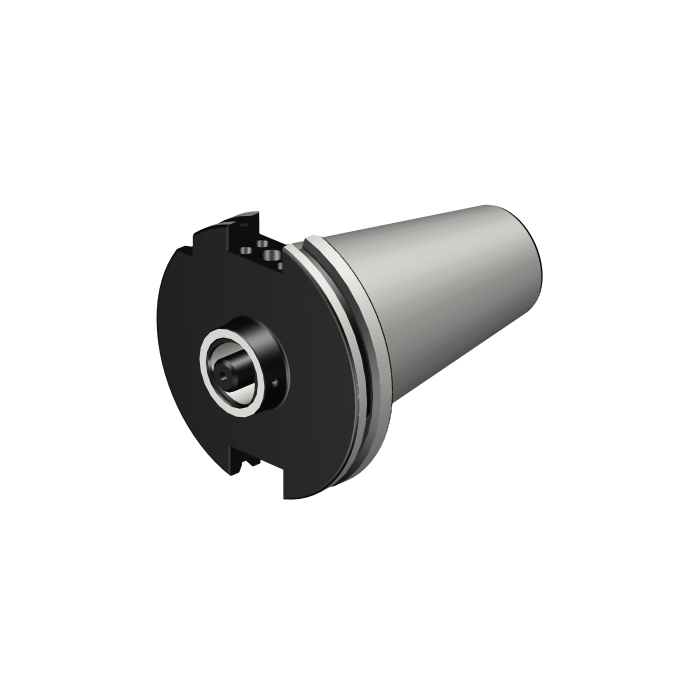

BIG-PLUS ISO to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS ISO to Coromant Capto® adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 22mm |
DCON - Connection Diameter | 32mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 30mm |
BD - Body Diameter | 97.5mm |
LB - Body Length | 30mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 45Nm |
WT - Weight Of Item | 2.673kg |
OAL - Overall Length | 131.8mm |
OHX - Maximum Overhang | 30mm |
ORDCODE | C3-390.540-50 030A |
ADINTMS - Adaptive Interface Machine Direction | M_SKG17BP_C0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0320_1 |
CNSC - Coolant Entry Style Code | 7 |
CXSC - Coolant Exit Style Code | 1 |
CRKS - Connection Retention Knob Thread Size | M24 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-20 05:08:00.000 |
STDLET - Standard Letter | AD/B |
STDNO - Standard Number | DIN69871 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
