Sandvik Coromant C5-DDJNL-35060-15-2 T-Max™ cutting unit for turning

Name: Sandvik Coromant C5-DDJNL-35060-15-2 T-Max™ cutting unit for turning
SKU: 5728419
Price: 5463.65 ZAR
Availability: InStock

R 5 463,65 inc. vat

In stock

SKU

5728419

T-Max® cutting unit for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® cutting unit for turning

More Information
CP - Coolant Pressure	4000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
TQ - Torque	3.9Nm
WT - Weight Of Item	636g
OAL - Overall Length	90mm
OHX - Maximum Overhang	60mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	27deg
DMIN - Minimum Bore Diameter	165mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	35mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	-6deg
LAMS - Inclination Angle	-7deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	0.79375mm
Insert Thickness	7.9375mm
ORDCODE	C5-DDJNL-35060-15-2
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:39:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	D
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_DN1507_3
Hand	L

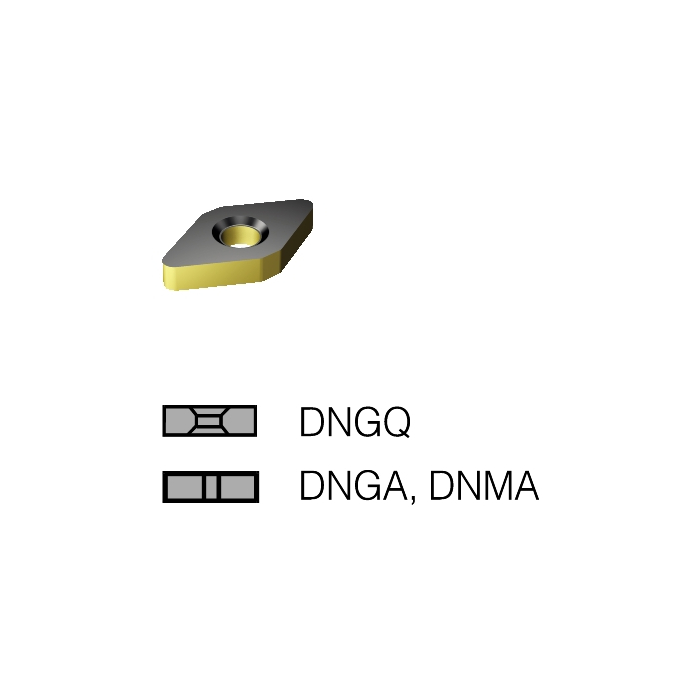

MIID - Master Insert Identification	DNGQ 15 07 08
IFS - Insert Mounting Style Code	2
SC - Insert Shape Code	D
SSC - Insert Seat Size Code	15
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
