Sandvik Coromant C6-391.02-50 080A Coromant Capto™ reduction adaptor
Next
Sandvik Coromant C6-391.02-40 040 Coromant Capto™ reduction adaptor
Previous
![Sandvik Coromant C6-391.02-50 080A Coromant Capto™ reduction adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/44117fbb8/sandvik-coromant-c6-391-02-50-080a-coromant-captotm-reduction-adaptor.jpg)
![Sandvik Coromant C6-391.02-40 040 Coromant Capto™ reduction adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/441132030/sandvik-coromant-c6-391-02-40-040-coromant-captotm-reduction-adaptor.jpg)
R 5 920,20
inc. vat
In stock
SKU
5729445

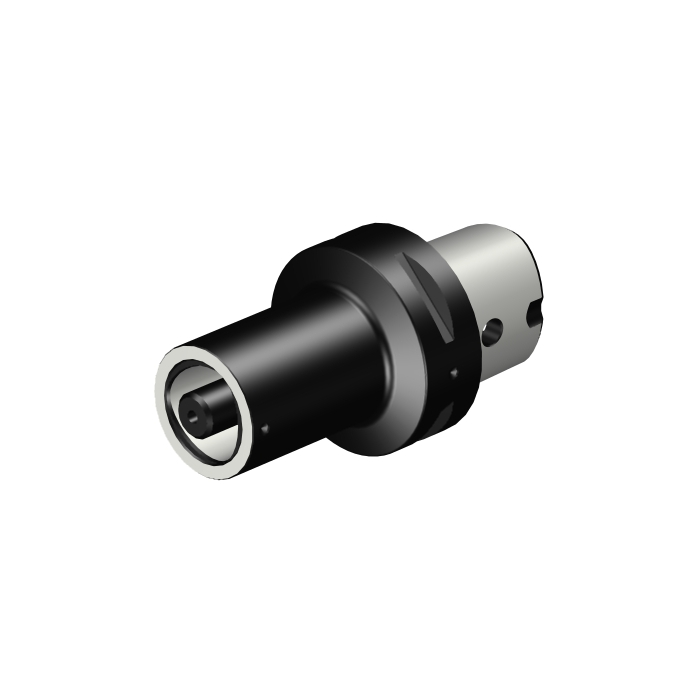

Coromant Capto® reduction adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® reduction adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 28mm |
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 80mm |
BD - Body Diameter | 63mm |
LB - Body Length | 80mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 55Nm |
WT - Weight Of Item | 1.232kg |
OAL - Overall Length | 118mm |
OHX - Maximum Overhang | 80mm |
ORDCODE | C6-391.02-40 080A |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0630_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0400_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-20 05:06:00.000 |
STDNO - Standard Number | ISO26623-2 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
